How thick is a membrane switch?

A membrane switch is typically between 0.005 inches and 0.030 inches thick. This compact electronic component consists of several thin layers, making it an essential part of many devices. A membrane switch helps users interact with machines efficiently. The thickness of a membrane switch is crucial, as it influences both the durability and the tactile feel when pressed. Additionally, the thickness determines how well the membrane switch fits into various devices.

Key Takeaways

Membrane switches are usually 0.005 to 0.030 inches thick. This thickness changes how strong they are and how they feel when pressed. Thicker membrane switches work well in tough places. They last longer and feel better to use. Designers need to think about what the switch will be used for. Thin switches are good for things like home electronics. Thick switches are better for factories or heavy work. A membrane switch has layers. These include the graphic overlay, spacer, and circuit layer. Each layer adds to the total thickness and how the switch works. Heat and moisture can change what thickness is needed. This helps the switch work well in different places. Sometimes, devices are small and need thin membrane switches. This helps make the device small and light. How a switch feels is important. Thicker overlays make it easier to feel when you press the switch. This helps people know they pressed it. Custom membrane switches can be made in different thicknesses and with special features. This makes sure they fit what each job needs.

Thickness Range

Standard Range

Membrane switches have different thicknesses for many uses. Most commercial membrane switches are between 0.005 inches and 0.030 inches thick. Some special types can be as thick as 0.040 inches. SOUSHINE membrane switches fit in this usual range. They work well for many industries.

Note: The industry is moving toward thinner and smaller membrane switches. Makers now use better materials and new glue methods to make them slimmer.

Layer Structure

A membrane switch is made of several layers. Each layer adds to the total thickness. The usual layers are:

• Graphic overlay
• Spacer
• Circuit layer
• Substrate
• Adhesive layers

A six-layer membrane switch is usually 0.9 mm to 1.3 mm thick. Some types, with substrate and adhesive, can be up to 3 mm thick. Good design and careful assembly affect how the membrane switch looks and works.

Overlay and Substrate

The overlay is the top layer of the membrane switch. It is usually 0.006 to 0.010 inches thick. This layer is where the user touches the switch. The substrate holds the circuit and can be up to 0.25 mm thick. These layers help decide how thick and strong the membrane switch is.

• Overlay thickness: 0.006–0.010 inches (0.152–0.254 mm)
• Substrate thickness: up to 0.25 mm

SOUSHINE uses strong materials for overlays and substrates. This makes sure each membrane switch is reliable and works well.

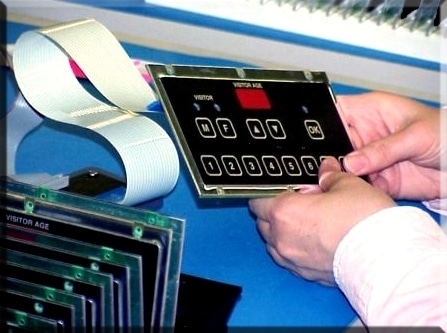

What Is a Membrane Switch

Basic Structure

A membrane switch has many thin layers. These layers make it simple and dependable. Each layer does something important. The top layer shows the look and symbols. The middle layers handle the electric circuit. The bottom layer holds everything together. When you press the top, the layers touch and send a signal. This keeps the switch flat and easy to use.

The main parts are:

• Graphic overlay lets users see and touch the switch
• Top circuit layer has bendable lines that carry electricity
• Spacer layer keeps the circuits apart until you press down
• Bottom circuit layer finishes the circuit when pressed

This setup helps the membrane switch work in lots of devices. The layers are sealed tight. This keeps out dust and water.

Key Layers

Every layer in a membrane switch uses its own material and thickness. The material and thickness change how the switch feels and works. The table below lists the main layers, what they are made of, and how thick they are:

The graphic overlay is usually PET or polycarbonate. The circuit layer is polyester film with special ink. The spacer and adhesive layers hold the parts in place and keep the circuits apart. Each layer adds to the total thickness. Picking the right layers helps the switch work well for the device.

Factors Affecting Thickness

Application Needs

Membrane switches need different thicknesses for different jobs. Designers pick the thickness based on how the switch will be used. Some things, like phones, need thin switches to look nice. Other things, like machines, need thicker switches to last longer. The materials used also change how thick the switch is. Materials must help the switch work well and last a long time. The type of circuit, like PET or FPC, also changes the final thickness. Thinner switches fit better in tight spaces.

• Consumer electronics: Thin design looks good and fits well
• Industrial equipment: Thick design is strong and lasts longer
• Material choice: Changes how the switch works and its thickness
• Circuit type: PET or FPC changes the thickness and design

Tactile Feedback

Tactile feedback is important for many people. It lets users know when they press a button. Some membrane switches give a snap feeling when pressed. This helps when users cannot see or hear the switch. A snap dome, made from stainless steel, gives a clear sign the switch worked. The backing layer, usually .015″ to .020″, helps the dome work right. This stops problems like the dome flipping the wrong way. Tactile feedback makes using the switch easier and helps stop mistakes.

• Physical feedback: Users feel when they press the button
• Snap action: Shows clearly when the switch is on
• Dome design: Stainless steel domes work the best
• Backing layer: .015″–.020″ helps the dome work well

Environment

Things like heat and water can change what thickness a membrane switch needs. High heat or wet places can make the switch act differently. Designers may use thicker layers to protect the switch. Thicker switches last longer in tough places. The right thickness keeps the switch working, even with heat or water. This makes the switch work better in many places.

Note: Heat and water can change how a membrane switch works. Designers must think about these things when picking thickness.

Space Constraints

The space inside a device is often very small. This limits how thick a membrane switch can be. Designers need to fit many parts in tight spaces. They pick thin membrane switches to save space. This helps keep devices small and modern. Thin switches also help things work well in small spots.

Lots of industries want slim devices. Medical tools, handheld scanners, and electronics use thin membrane switches. These products must be light and easy to carry. Thick switches would take up too much space and add weight.

SOUSHINE knows these needs are important. The company makes membrane switches as thin as 0.005 inches (0.127 mm). This thin size helps them fit into small devices. SOUSHINE’s team works with clients to pick the best thickness for each job.

Tip: Plan early to avoid space problems. Designers should measure the space before picking a membrane switch.

A thin membrane switch can still work very well. SOUSHINE uses strong materials and smart ways to put them together. The switches stay strong even when they are thin. The company tests every product to make sure it is good enough.

Here are some ways space limits change membrane switch design:

• Device Size: Small devices need thin switches.
• Component Stacking: Many layers need careful thickness checks.
• Mounting Options: Thin switches give more ways to mount.
• User Experience: Slim switches make devices easy to hold.

SOUSHINE’s engineers use special software to make custom designs. They check every part to make sure the switch fits. Clients can ask for samples to test before making lots of them.

Space limits affect every part of membrane switch design. Thin switches help products stay small, light, and simple to use. SOUSHINE helps clients with advice and custom ideas for any space problem.

Membrane Switch Performance

Actuation Force

Actuation force means how much pressure you need to press the switch. The overlay’s thickness is important for this. If the overlay is thick, you must push harder. The material, like polyester or polycarbonate, also matters. Some materials need more force than others. How stiff the panel is can change the force needed. The switch’s shape and design also play a part. Sometimes, these things make you press harder than the switch’s rating says.

• Thicker overlays need more pressure to work.
• Material choice changes how easy it is to press.
• Panel stiffness and shape can make pressing easier or harder.

Designers have to pick the right thickness and material. This helps people use the switch easily and every time.

Durability

Durability means how long the switch lasts when used a lot. A good membrane switch can handle many presses. Each layer’s thickness, like the overlay and circuit, helps stop damage. Thicker layers protect the switch from getting worn out. Strong materials, like PET or polycarbonate, help the switch last longer. Sealed layers keep out dust and water. This makes the switch last even longer.

• Thicker overlays and substrates stop wear.
• Strong materials keep the switch from breaking.
• Sealed layers keep out dust and water.

A tough switch means fewer repairs and replacements. This saves time and money for everyone.

Tactile Response

Tactile response is the feeling you get when you press the switch. The design and thickness change how it feels. Metal dome switches give a sharp click and sound. This lets you know the switch worked. These switches are good for places where people use them a lot. They keep their feel and force over time. Polydome switches feel softer and can be made with different forces. They cost less but may not feel as crisp as metal domes.

• Metal dome switches give a clear click and sound.
• Polydome switches feel softer and can be changed.
• Tactile feedback helps users press the right button.

Note: The best tactile response depends on what you need. Designers should try different types to see what works best.

Application Suitability

Industrial

Industrial machines work in hard places. Factory tools and control panels get used a lot. These need membrane switches that last a long time. They must keep out dust, water, and chemicals. SOUSHINE makes membrane switches for these jobs with thicker overlays and substrates. This extra thickness helps the switch stay strong and work well.

Engineers pick membrane switches up to 0.64 mm thick for factories. This is important for LGF types. Thicker switches protect better and give more support. They also help workers feel when they press a button. Many workers wear gloves in factories. A thicker membrane switch makes sure the button works, even with gloves on.

Note: Industrial membrane switches often have backlighting, shielding, and sealing. These features help them work better in tough places.

Medical

Medical devices must be safe and clean. Membrane switches here need to be easy to wipe and not let in liquids. SOUSHINE makes special membrane switches for medical tools. These can be as thick as 0.64 mm, just like industrial ones.

You find medical membrane switches in monitors, test machines, and handheld tools. The thick design keeps the inside safe from spills and cleaning. It also gives a clear feel when pressed. This helps healthcare workers use devices fast and right.

A thick membrane switch in medical tools stops mistakes. This is very important where safety is needed. SOUSHINE helps medical makers pick the best thickness and materials for each tool.

Consumer

Consumer electronics use membrane switches in things like remotes, microwaves, and fitness bands. These need switches that are thin, light, and simple to use. SOUSHINE makes these with a thickness from 0.125 mm to 0.225 mm.

The table below shows the thickness for each use:

Thin membrane switches fit small devices better. They help keep products slim and easy to hold. SOUSHINE uses new materials and careful work to make sure thin switches last and work well.

Consumer products often need special colors and designs. SOUSHINE uses digital printing to make overlays look just right. The company checks every switch to make sure it is good before sending it out.

Custom

Custom membrane switches let designers solve special problems. SOUSHINE gives clients many choices for size and features. These switches can work in almost any device or place.

Custom membrane switches often have many layers. Each layer does something different. Some layers stop static or block radio waves. Other layers hold LEDs or sensors. This lets engineers make switches that do more than just turn things on or off.

Designers can pick from different thicknesses. Some jobs need thin switches for small spaces. Other jobs need thick switches for more strength or extra parts. SOUSHINE helps clients choose the best thickness for each use.

Custom membrane switches can have special features for better safety or performance.

Some common custom choices are:

• Multi-layer designs for more support or shielding
• LEDs inside for lights or signals
• Built-in resistors or sensors for extra jobs
• Programmable chips for smart controls
• Different embossing or shaping for better button feel
• Adding PCBs or flexible circuits for tricky layouts

The table below lists important parts of custom membrane switch design:

SOUSHINE uses special tools to design each custom switch. The team talks with clients to learn what the device needs. They use software to plan layers and pick the best materials. This helps make sure the switch fits and works well.

Custom switches often need special tests. SOUSHINE can make samples for clients to try before making a big order. This helps find the best thickness and features for the job.

Tip: Plan early to avoid problems with fit or how it works. Tell the design team about your device at the start.

Custom membrane switches can fix many problems. They can fit in small spaces, add new features, or protect against tough places. SOUSHINE’s team has worked with many industries. They help clients get the right switch for every project.

Custom options make membrane switches useful for many things. With the right design, these switches can make a device work and feel better. SOUSHINE helps clients from the first idea to the finished switch.

Choosing Thickness

Balancing Needs

Picking the right thickness for a membrane switch takes planning. Designers have to think about how well it works, how long it lasts, and how much it costs. Each thing matters for how the switch will be used.

• The material you pick changes the price and how well it works. Good materials like silicone rubber and polyester film last longer and work better, but they cost more.
• How the switch is made, like screen printing or digital printing, can change the price.
• Special features, like cool graphics or extra layers, can make it cost more.
• Some materials can handle heat and chemicals, so the switch lasts longer.
• The glue must hold the layers together, even when things get rough.
• Checking things like humidity and temperature early helps the switch work well.

Designers also need to think about how much space is in the device and if users want to feel a click. A thick switch can feel stronger and give more support. A thin switch fits better in small spaces. The best choice depends on what the switch will do.

Tip: Write down everything you need before you start designing. This can help you avoid spending more money later.

Manufacturer Guidance

SOUSHINE helps clients at every step when making a membrane switch. Their team gives custom design help for each project. Engineers use special software to make models and check each layer’s thickness.

The steps are:

1. Learn what the device needs and where it will be used.
2. Suggest the best materials and ways to build it.
3. Give samples so clients can try them out.
4. Change the design if clients want something different.

SOUSHINE tells clients to test different thicknesses with samples. Testing makes sure the switch works well and lasts a long time. The team can make samples fast so clients can decide what is best.

SOUSHINE’s way of working makes sure each membrane switch is right for its job. Their skill and tools help clients get the best switch for their needs.

Myths About Thickness

Thicker Is Better?

Some people think a thicker membrane switch is always stronger. This is not always true. Thickness is just one part of how strong a membrane switch is. Other things matter too.

• The materials used, like polyester or polycarbonate, help decide how long the switch lasts.
• How the layers are put together can change how well it works.
• Sunlight or chemicals can also affect how long the switch lasts.
• Special coatings, like UV-resistance or antimicrobial layers, help the switch last longer, even if it is thin.

A thicker membrane switch can give more support sometimes. But if the materials or design are not good, being thick will not stop problems. SOUSHINE engineers pick the right materials and features for each job. They do not just make switches thick to make them better.

A good membrane switch uses the best materials and features for where it will be used. Just making it thick does not mean it will work better.

Thin Means Weak?

Some people think thin membrane switches are not strong or do not last. This is not true. Thin switches can be strong if they are made well.

Thin membrane switches use new materials and careful building. They fit in small spaces and still work great. SOUSHINE uses strong glue and good films to keep thin switches working well.

• Short circuits or open circuits can make the switch not work.
• If the conductive layer gets hurt, the switch may have problems.
• Bad building can make the circuits not line up right.
• Too much force from outside can break the switch.

Most problems with thin membrane switches come from bad design or poor building, not from being thin. When SOUSHINE makes a thin membrane switch, they check every layer and test the finished switch. This helps stop problems before they happen.

Some people think membrane switches are not as tough or do not feel as good as mechanical switches. This is not always true. Many thin membrane switches give a clear feel and last a long time.

Thin membrane switches can be strong and last long. The secret is good design, strong materials, and careful building.

Most people in the industry say a membrane switch should be 0.9mm to 1.3mm thick. This thickness helps the switch work well and last a long time. It also makes it easy to put into different devices. The table below shows the usual thickness for each type:

How thick a switch is changes how it feels and how long it works. It also decides where you can use it. SOUSHINE helps customers pick the right thickness for every project.
