SOUSHINE is a vertically integrated manufacturer of advanced Human-Machine Interface (HMI) solutions for the global automotive industry. We specialize in the research, development, and production of high-reliability membrane switches that meet the rigorous standards of in-vehicle applications. Our products form the critical link between driver, passenger, and vehicle systems, offering a seamless blend of functionality, durability, and modern design integration. From primary driving controls to interior convenience functions, our membrane switches are engineered for performance and longevity in the demanding automotive environment.
What Are Automotive Membrane Switches?
An automotive membrane switch is a multi-layered, printed electronic component that functions as a user interface to control a vehicle’s electrical systems. It operates by momentarily closing or opening an electrical circuit when a specific area on its surface is pressed.

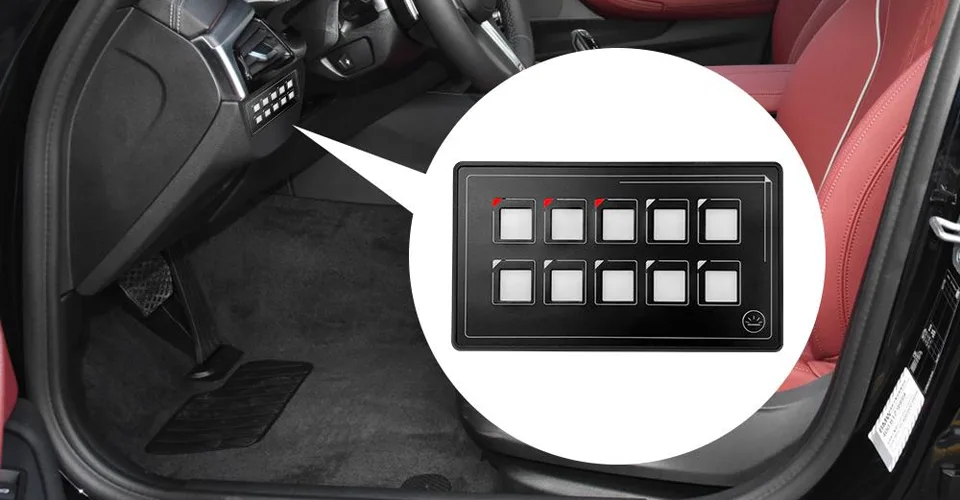

Unlike traditional mechanical switches, a membrane switch consists of flexible substrate layers, typically made from high-performance polyester (PET) or similar polymers. Conductive circuits are screen-printed onto these substrates using silver or carbon-based inks. The layers are precisely bonded together with industrial adhesives, creating a fully sealed, low-profile assembly. This construction makes them an integral part of modern automotive interior design, including instrument panels, center consoles, and control modules.
How Do Automotive Membrane Switches Work?
The operation of a SOUSHINE automotive membrane switch is based on a reliable and straightforward principle. The core assembly includes:
- Graphic Overlay: The top layer, made from durable polycarbonate or polyester. It is reverse-printed with icons, text, and colors, providing a wear-resistant and cleanable user interface.
- Top Circuit Layer: A flexible layer directly beneath the overlay, featuring a printed conductive circuit pattern.
- Spacer Layer: An adhesive layer with cutouts that separates the top and bottom circuits, creating a small air gap. This layer prevents the switch from being in a constantly “on” state.
- Bottom Circuit Layer: A second flexible layer with another printed circuit pattern.
- Rear Adhesive: A final layer that bonds the entire switch assembly to a rigid support panel or the vehicle’s housing.
When a user presses a specific button on the graphic overlay, the top circuit layer flexes through the cutout in the spacer layer. The conductive pad on the top circuit makes contact with the conductive pad on the bottom circuit, completing the electrical path and sending a signal to the vehicle’s control unit. For enhanced user feedback, metal domes can be integrated to provide a distinct “snap” or tactile response upon actuation.
Why Use Membrane Switches in Automotive Applications?
The selection of membrane switches for automotive controls is driven by their distinct technical advantages over other interface technologies in this specific environment.
- Environmental Sealing: The sealed, multi-layer construction provides inherent protection against dust, moisture, spills, and cleaning agents, achieving IP65 ratings or higher. This is critical for maintaining long-term reliability inside a vehicle cabin.
- Durability and Reliability: Automotive-grade membrane switches are engineered to withstand millions of actuations, ensuring a long operational life. They are highly resistant to the constant vibrations, temperature fluctuations (-40°C to +85°C), and humidity typical of automotive environments.
- Low-Profile & Space-Saving Design: Their thin, flexible profile allows for seamless integration into compact and contoured surfaces, freeing up valuable interior space and enabling sleek, modern dashboard and console designs.
- Design Flexibility: Graphic overlays can be customized with a wide array of colors, symbols, and finishes to match brand identity and interior aesthetics. Features like backlighting, embossing for tactile feel, and integrated indicator LEDs are easily incorporated.
- Cost-Effectiveness: Compared to capacitive touch systems or complex mechanical switch assemblies, membrane switches offer a lower total cost of production and tooling, particularly for complex control panels with multiple buttons.
- Reduced Assembly Weight: The lightweight nature of the polymer films used in membrane switches contributes to overall vehicle weight reduction, a key goal for improving fuel efficiency and electric vehicle range.
Refined Application Areas
SOUSHINE membrane switches are engineered for precision and reliability in specific in-vehicle control systems.
FAQ
How durable are SOUSHINE membrane switches in extreme temperatures?
Our automotive-grade membrane switches are constructed with materials selected to perform reliably in a typical automotive temperature range of -40°C to +85°C. We conduct rigorous environmental testing to ensure functionality across these extremes.
Can membrane switches be backlit for nighttime visibility?
Yes. We can integrate various backlighting technologies, including Light Emitting Diodes (LEDs) and Electroluminescent (EL) lamps, directly into the switch assembly. This allows for clear and uniform illumination of icons and text.
What is the typical lifespan of an automotive membrane switch?
SOUSHINE membrane switches are designed for high-cycle life, typically rated for over 1 million actuations, ensuring they last the operational lifetime of the vehicle under normal use conditions.
Can tactile feedback be customized?
Absolutely. We can embed metal or polyester domes of various sizes and actuation forces (typically from 15g to 750g) to achieve the specific tactile response required by the application and meet OEM specifications for user feel.
Are your membrane switches resistant to chemicals and cleaning agents?
Yes. The graphic overlay material, typically hard-coated polyester or polycarbonate, is selected for its resistance to common automotive cleaning agents, oils, and other chemicals, ensuring the interface remains clear and functional over time.
