In the aerospace and defense sectors, altitude measurement is a fundamental parameter for safe and effective operation. Altimeters provide this critical data, and their accuracy is paramount. Modern avionics rely on precise, durable, and reliable sensors to convert atmospheric pressure into exact altitude readings. SOUSHINE specializes in the core component that makes this possible: advanced force sensing technology engineered for the demanding environment of aviation. Our sensors provide the accuracy and stability required for barometric altimeters used in commercial, military, and unmanned aerial systems.
What is Force Sensing in Altimeters?
In the context of an altimeter, force sensing is the direct measurement of barometric pressure. The foundational principle of a barometric altimeter is the relationship between altitude and air pressure: as altitude increases, atmospheric pressure decreases in a predictable manner.
An altimeter is essentially a highly sensitive pressure transducer. It measures the force exerted by the surrounding air on a sensing element. This measurement is then converted into an electrical signal, which is processed and displayed to the flight crew as an altitude reading, typically in feet or meters above mean sea level. SOUSHINE’s force sensing technologies are the critical link in this chain, ensuring that the initial pressure measurement is captured with the highest degree of precision.
How Force Sensors Enable Altitude Measurement
SOUSHINE’s solutions for altimeters are centered on piezoresistive technology, a proven and highly reliable method for pressure measurement. This technology is often implemented in Micro-Electro-Mechanical Systems (MEMS), which offer the benefits of small size, low weight, and exceptional accuracy. The process works as follows:
- Sensing Element: At the heart of the sensor is a miniature silicon diaphragm. This diaphragm is engineered to flex precisely in response to changes in external air pressure.
- Piezoresistive Effect: Embedded within the silicon diaphragm are piezoresistive elements. The piezoresistive effect is a property of certain materials to change their electrical resistance when subjected to mechanical stress.
- Signal Conversion: As the diaphragm flexes due to a change in altitude (and thus a change in pressure), it creates stress in the embedded piezoresistors. This stress causes a proportional change in their electrical resistance.
- Wheatstone Bridge Circuit: These resistors are configured in a Wheatstone bridge circuit. This circuit is highly sensitive to the small changes in resistance and translates them into a clear, stable, and measurable voltage output signal.
- Data Processing: The altimeter’s avionics system receives this voltage signal, which directly corresponds to the measured barometric pressure. Using standardized atmospheric models, the system calculates and displays the aircraft’s precise altitude.
Why SOUSHINE Force Sensing Technology is Critical for Altimeters
Selecting the right sensing component is a critical design decision for any avionics system. SOUSHINE’s force sensing technology provides the performance and reliability that aerospace applications demand.
- High Accuracy and Resolution: Our sensors are designed to detect minute changes in pressure, allowing for very fine altitude resolution. This is crucial during critical flight phases like approach and landing.
- Excellent Stability: The materials and design of our sensors exhibit minimal drift over time and across a wide range of operating temperatures. This long-term stability reduces the need for frequent recalibration and ensures consistent performance.
- Durability in Harsh Environments: Aerospace components must withstand extreme conditions, including significant temperature variations, vibration, and humidity. Our force sensors are built with robust materials and construction to ensure reliable operation in these environments.
- Compact and Lightweight Design: Leveraging MEMS-based design principles, our sensors are compact and lightweight, making them ideal for integration into modern, space-constrained avionics without adding significant weight.
- Repeatable and Reliable Performance: Every sensor is manufactured to stringent quality standards, ensuring consistent and repeatable performance from one unit to the next, which is essential for fleet-wide reliability.

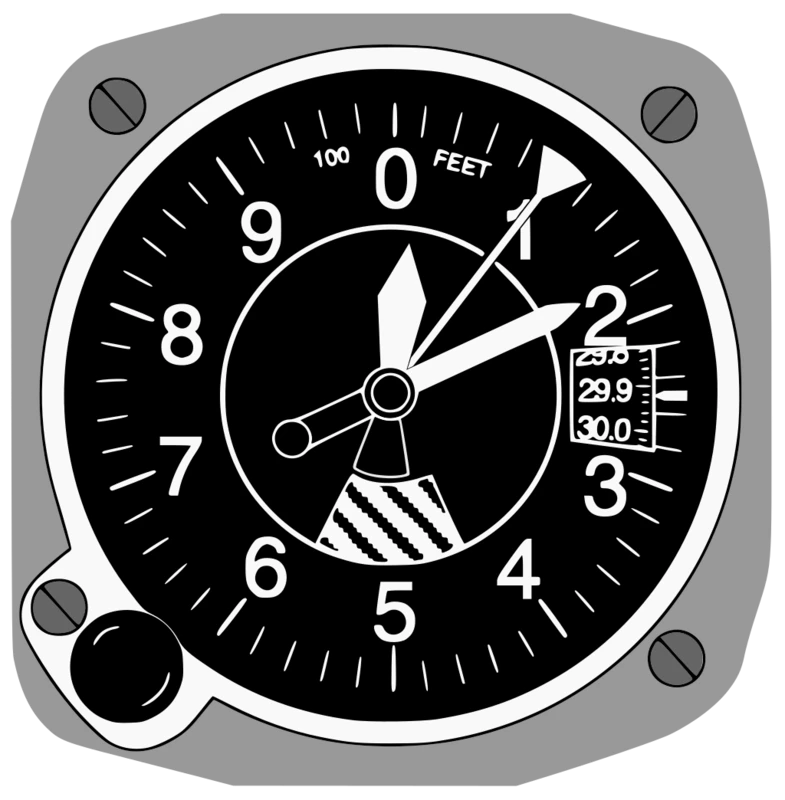

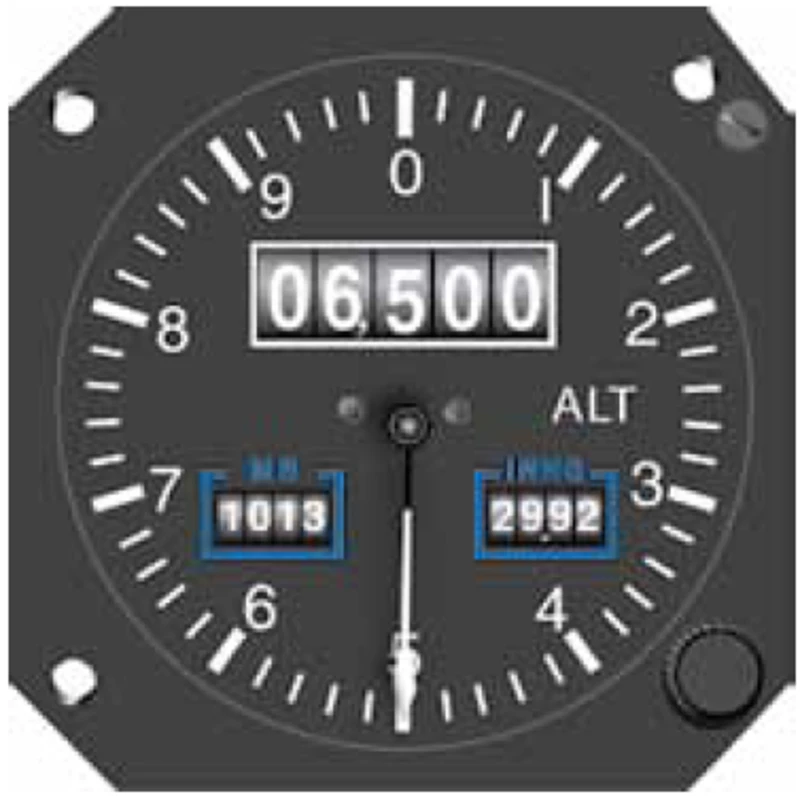

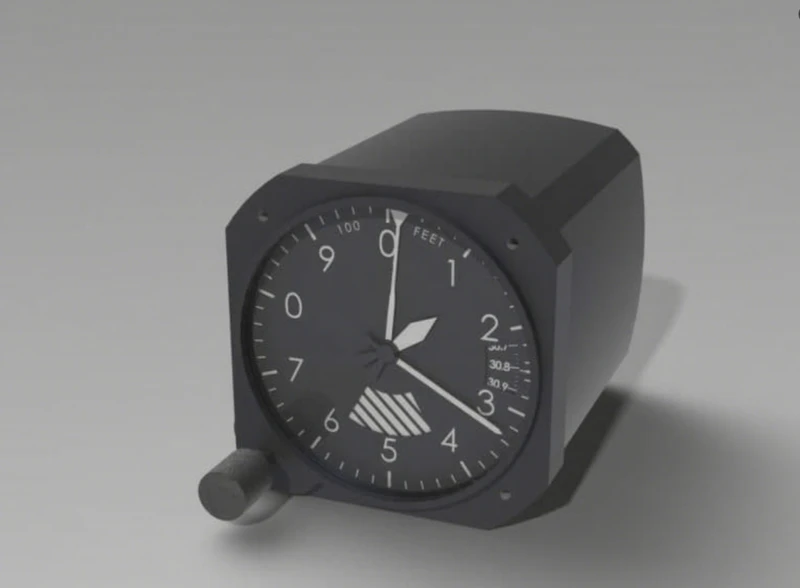

Display
FAQ
What is the typical pressure range for force sensors used in aviation altimeters?
Altimeter sensors must operate accurately from sea level pressures (around 1013 hPa or 29.92 inHg) to the low pressures found at high altitudes (e.g., below 200 hPa for commercial airliners). Our sensors are calibrated for the full spectrum of pressures required for aerospace operations.
How does temperature affect the accuracy of your pressure sensors?
Temperature can influence sensor output. To counteract this, our sensors incorporate temperature compensation mechanisms. This can be achieved through integrated circuitry or by providing a separate temperature output, allowing the avionics system to apply corrections, thereby ensuring high accuracy across the entire operational temperature range required for aviation.
What kind of output signals do SOUSHINE’s sensors provide?
We offer sensors with a variety of output options to suit different system architectures. These include analog outputs (e.g., millivolt or amplified voltage) and digital outputs (e.g., I²C, SPI). Digital outputs are often preferred in modern avionics for their high noise immunity.
Are your sensors compliant with aerospace industry standards?
Yes, our products are designed and manufactured to meet the rigorous standards of the aerospace industry. We provide comprehensive documentation and traceability to support certification processes.
Can your force sensors be used in both primary and standby altimeter systems?
Absolutely. The high reliability and accuracy of our sensors make them suitable for use in primary flight instruments. Their stability and compact size also make them an excellent choice for independent standby altimeter systems, providing essential redundancy.
What is the difference between an absolute and a differential pressure sensor in this context?
An altimeter requires an absolute pressure sensor. It measures pressure relative to a perfect vacuum, which is necessary to determine a specific barometric pressure corresponding to a unique altitude. A differential sensor, by contrast, measures the difference between two pressure points and is used in other aerospace applications like cabin pressure control or airspeed measurement.
