The precise regulation of cabin pressure is a critical safety function in all commercial and military aircraft operating at high altitudes. A cabin pressure control system (CPCS) maintains a safe and comfortable environment for passengers and crew by managing the pressure differential between the inside of the aircraft and the ambient atmosphere. SOUSHINE’s force sensing technology provides essential data for ensuring the reliability and structural integrity of these vital systems.
What is Cabin Pressure Control?
A cabin pressure control system is an essential component of an aircraft’s environmental control system (ECS). Its primary function is to maintain a cabin altitude that is significantly lower than the aircraft’s actual flight altitude. Typically, the cabin pressure is kept at an equivalent of 8,000 feet (2,400 meters) or lower.
This is achieved by directing compressed air from the engines (bleed air) into the cabin and regulating the release of this air through an outflow valve. The system must react precisely to changes in altitude during ascent, cruise, and descent to prevent rapid pressure changes that could cause physiological discomfort or injury to those on board.
How Force Sensing Technology is Applied
While cabin pressure is fundamentally a function of air pressure, force sensing provides a direct and robust method for measurement and monitoring within the control system and surrounding structures. SOUSHINE’s technology is integrated in two key ways:
- Direct Pressure Measurement: A specialized application of force sensors involves their integration into a sealed vacuum cavity. In this configuration, the external cabin air pressure exerts a direct force on the surface of the sensor diaphragm. This applied force is precisely measured and converted into an electrical signal that corresponds to a specific absolute pressure reading. This method offers a highly durable and reliable means of pressure measurement, resistant to the vibration and harsh conditions of the aerospace environment.
- Structural Integrity Monitoring: The significant pressure differential between the cabin and the outside atmosphere exerts considerable force on the aircraft’s fuselage, particularly on doors, windows, and the pressure bulkhead. Force sensors and load cells are strategically placed on these structural components during design, testing, and in advanced structural health monitoring (SHM) systems. These sensors continuously measure the stress and strain, providing critical data to:
- Validate airframe design and fatigue life during development.
- Detect potential structural fatigue or damage in real-time.
- Ensure the secure latching of cabin doors and cargo hatches.
Why Use Force Sensors for Cabin Pressure Systems?
Integrating SOUSHINE’s force sensing technology into the ecosystem of cabin pressure control offers distinct advantages focused on safety, reliability, and data precision.
- Enhanced Reliability: Force sensors designed for aerospace applications are exceptionally robust. They offer superior long-term stability and are less susceptible to drift, ensuring consistent and accurate measurements over the aircraft’s operational life.
- Direct Structural Feedback: Unlike traditional pressure transducers, force sensors provide direct measurement of the physical loads on the airframe. This data is invaluable for ensuring the aircraft’s structural integrity is not compromised by the constant cycles of pressurization.
- Precision and Safety: The high precision of force sensors allows for the detection of minute changes in the forces exerted on structural components. This can provide early warnings of potential issues with seals, latches, or structural fatigue, allowing for proactive maintenance and enhancing overall flight safety.
- Data for Advanced Systems: The output from force sensors can be integrated into advanced flight control and health monitoring systems, contributing to a more comprehensive understanding of the aircraft’s operational status.

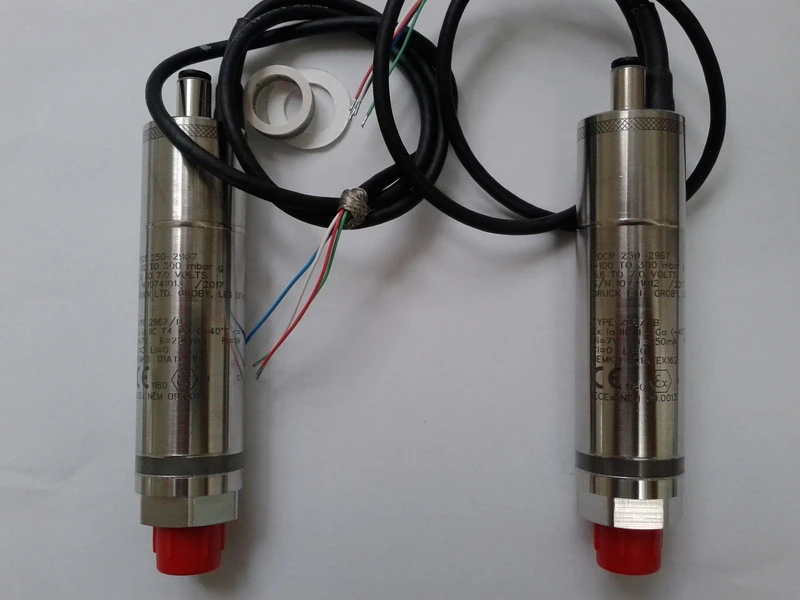

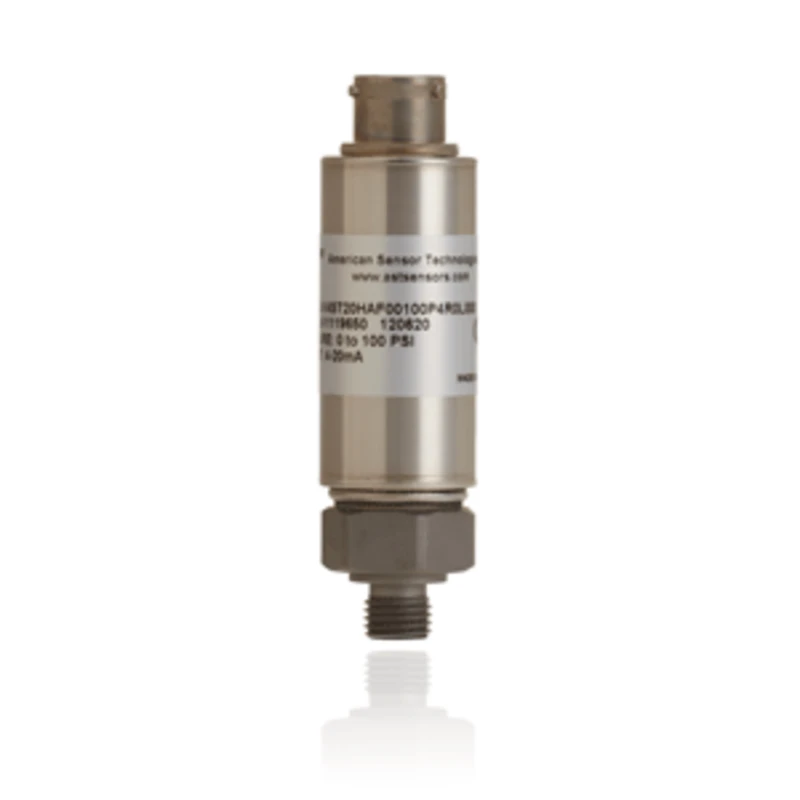

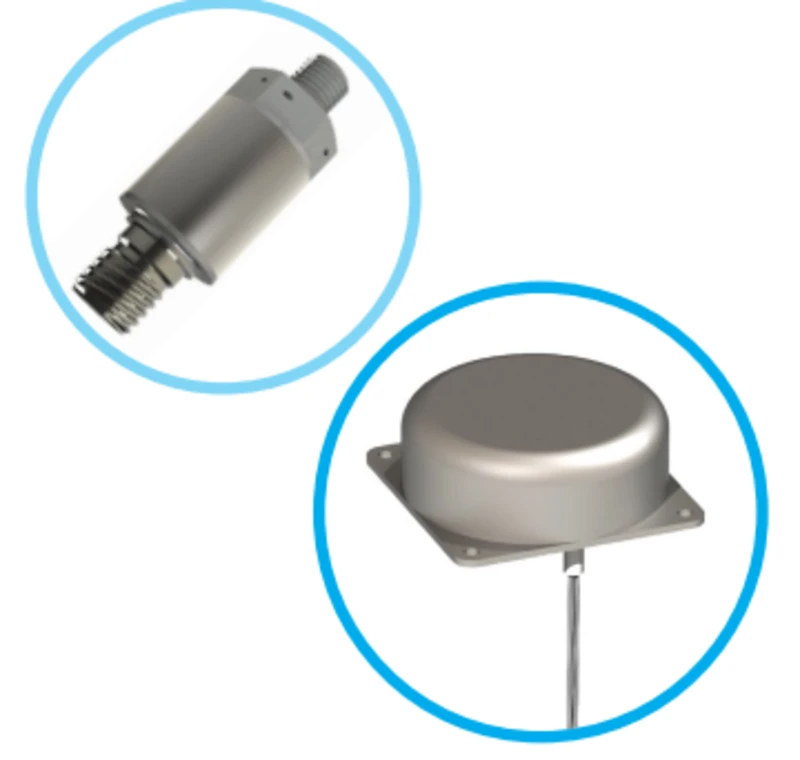

Display
FAQ
How does a force sensor measure air pressure?
In this specific application, the force sensor is not measuring the properties of the air itself. Instead, it is precisely welded to a sealed vacuum chamber. The air pressure from the cabin exerts a force on the external surface of this assembly. The sensor measures this force, which has a direct and calculable relationship to the absolute air pressure.
Are force sensors used to directly control the outflow valve?
The primary control loop for the outflow valve typically uses data from air pressure sensors. However, force sensors can be integrated into the valve’s actuator mechanism to provide force feedback, monitoring for obstructions or mechanical faults and ensuring the valve is moving as commanded.
What makes your force sensors suitable for the aerospace environment?
SOUSHINE’s force sensors are engineered for the demanding conditions of aerospace applications. They are designed to be resistant to extreme temperatures, vibration, and electromagnetic interference (EMI). We utilize materials like stainless steel and proprietary thin-film strain gauge technology for superior stability and long-term reliability.
Can force sensing be used to monitor the integrity of aircraft windows?
Yes. The pressure differential exerts significant outward force on aircraft windows. By integrating force sensors into the window frame assembly, it is possible to monitor these forces in real-time. Any anomalous readings could indicate a potential issue with the window or its seal, providing a critical layer of safety monitoring.
What is the difference between a pressure sensor and a force sensor in this application?
A pressure sensor measures the force exerted by a fluid (air) distributed over a specific area (P = F/A). A force sensor measures the total load or force applied to it. In our direct pressure measurement application, we use a force sensor to measure the total force on a known area to derive the pressure. In structural monitoring, we are concerned with the total force (load) on a component, making a force sensor the appropriate tool.
