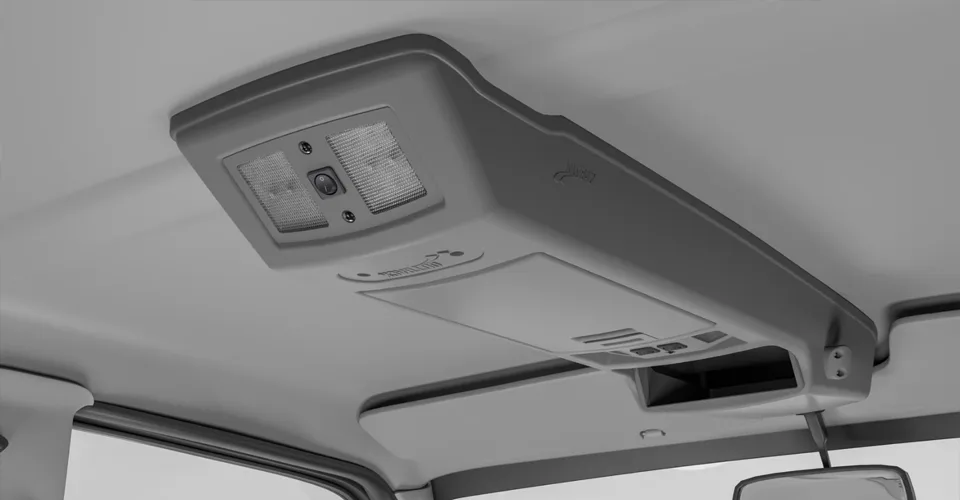

The automotive overhead console controls are critical human-machine interface (HMI) in modern vehicles, providing centralized control for lighting, sunroofs, and emergency systems. SOUSHINE engineers and manufactures high-reliability membrane switches specifically for this application, delivering a combination of performance, durability, and design flexibility that meets stringent automotive standards.
What Are Membrane Switches for Automotive Overhead Console Controls?
A membrane switch for an automotive overhead console is a multi-layered, printed electronic circuit that utilizes pressure to open and close a circuit. Unlike traditional mechanical switches, it features a low-profile, sealed construction. The switch assembly typically consists of a graphic overlay, a circuit layer printed with conductive inks, and a spacer adhesive. This construction allows for integration into complex and compact console geometries.
How They Function in an Automotive Environment
The operation of a membrane switch in an overhead console is direct and reliable.
- Actuation: When a user presses a specific function button on the graphic overlay (e.g., ‘map light’ or ‘sunroof open’), it flexes the top circuit layer through a cutout in the spacer.
- Contact: This action forces a conductive pad on the upper circuit layer to make contact with a corresponding pad on the lower circuit layer.
- Signal: The contact completes the circuit, sending a low-voltage signal to the vehicle’s Body Control Module (BCM) or a local microcontroller, which then executes the command (e.g., activating a light or motor).
- Release: Upon release, the overlay’s natural tension causes it to return to its original position, breaking the circuit.
For tactile feedback, a metal or polyester dome can be incorporated under the overlay, providing a distinct “snap” sensation to confirm actuation for the driver.
Why Use SOUSHINE Membrane Switches for Overhead Controls?
SOUSHINE’s membrane switches provide distinct engineering advantages for automotive overhead console applications.
- Durable and Sealed Construction: Engineered for millions of actuations, our switches feature a sealed surface with high IP ratings. This protects internal electronics from dust and moisture, ensuring superior long-term reliability in demanding automotive environments.
- Design and Integration Flexibility: The slim, flexible profile allows for seamless integration into modern, curved console designs. We offer full customization of graphics, button shapes, and backlighting to meet your specific aesthetic and functional requirements.
- Cost-Effective with Advanced Features: Integrating multiple controls into a single unit reduces component count, assembly time, and overall cost. We can embed key features directly into the assembly, including LED backlighting, tactile domes, and EMI/RFI shielding.
Display
FAQ
What is the operational life of your membrane switches in an automotive setting?
Our automotive-grade membrane switches are typically rated for over 1 million actuations. We use high-quality materials like heat-stabilized polyester to ensure performance across a wide temperature range (-40°C to 85°C) and resistance to vibration.
Can the overhead console switches be backlit?
Yes. We offer several backlighting options, including embedded surface-mount LEDs for individual button illumination and fiber optic layers for uniform, distributed lighting. The lighting color and intensity can be specified to match the vehicle’s interior lighting scheme.
How customizable are the graphics and button feel?
Customization is a core part of our process. The graphic overlay can be printed with any iconography, color, and finish (e.g., matte, gloss). We can also create raised (embossed) buttons for improved touch recognition. The actuation force and tactile feedback can be precisely tuned using different dome sizes and materials.
Are your membrane switches resistant to automotive cleaning chemicals?
Absolutely. We select overlay materials, typically polycarbonate or polyester, based on their chemical resistance properties. The top surface is engineered to withstand common interior cleaners without fading, clouding, or degradation.
What is the development process for a custom overhead console switch?
Our process begins with an engineering consultation to define your electrical and mechanical requirements. We then move to design and prototyping, providing samples for fit and function testing in your console assembly. Once the design is approved, we proceed with mass production at our certified manufacturing facility.
