Calculators are fundamental tools in educational, professional, and personal settings. The reliability of a calculator is contingent on the durability and accuracy of its keypad. SOUSHINE develops and manufactures high-quality membrane switches that form the core of modern calculator keypads, ensuring consistent performance over millions of actuations. This page details the construction, function, and advantages of our membrane switch technology in calculator applications.
What is a Membrane Switch in a Calculator?
A membrane switch is a multi-layered electrical switch that registers a keypress by temporarily closing an electrical circuit. In a calculator, the keypad is a primary example of a membrane switch interface. Unlike mechanical switches with distinct moving parts, a membrane switch is composed of flexible layers of polymer films. The typical construction of a SOUSHINE membrane switch for a calculator includes:
- Graphic Overlay: The top layer, made from durable materials like polyester or polycarbonate. It is printed with the numbers, symbols, and functions specific to the calculator’s design. This layer provides a sealed, easy-to-clean surface.
- Adhesive Layer: A spacer layer that separates the top and bottom circuit layers. It has cutouts corresponding to each key location.
- Top Circuit Layer: A flexible film with conductive traces printed on it.
- Bottom Circuit Layer: Another flexible film with a corresponding set of conductive traces.
- Rear Adhesive: A layer that securely bonds the entire membrane switch assembly to the calculator’s housing.
How Do Membrane Switches Function in a Calculator?
The operation of a membrane switch in a calculator is based on a straightforward electromechanical principle:
- Initial State: In its resting state, the switch is open. The top and bottom circuit layers are separated by the adhesive spacer. No electrical current flows between the conductive pads aligned under each key.
- Actuation: When a user presses a key on the graphic overlay, the flexible top layer deforms and pushes the conductive pad on the top circuit layer through the cutout in the spacer.
- Circuit Closure: This action makes physical contact with the corresponding conductive pad on the bottom circuit layer, closing the circuit.
- Signal Transmission: The closure sends a unique electrical signal to the calculator’s microprocessor. The microprocessor then interprets this signal to register the specific number or function and displays it on the screen.
For calculators requiring tactile feedback, a small metal or polyester dome can be integrated into the switch construction. This dome provides a distinct “snap” sensation, confirming to the user that the key has been successfully pressed.
Why Use Membrane Switches for Calculators?
SOUSHINE’s membrane switches are engineered to provide significant advantages for calculator manufacturing and end-user experience:
- Durability and Longevity: The sealed, layered design protects the internal circuitry from dust, debris, and liquid spills. Our membrane switches are rated for millions of actuations, ensuring a long operational life for the calculator.
- Low Profile and Compact Design: The thin, flexible nature of membrane switches allows for the sleek, lightweight, and portable calculator designs that are common today.
- Cost-Effective Manufacturing: The materials and manufacturing processes for membrane switches are highly efficient, making them a cost-effective solution for mass-produced consumer electronics like calculators.
- Reliable Performance: The direct contact-based mechanism provides consistent and reliable input, minimizing the chances of missed or double entries.
- Customizable Interface: The graphic overlay can be custom printed with any set of colors, symbols, and languages, allowing for versatile and brand-specific calculator designs.

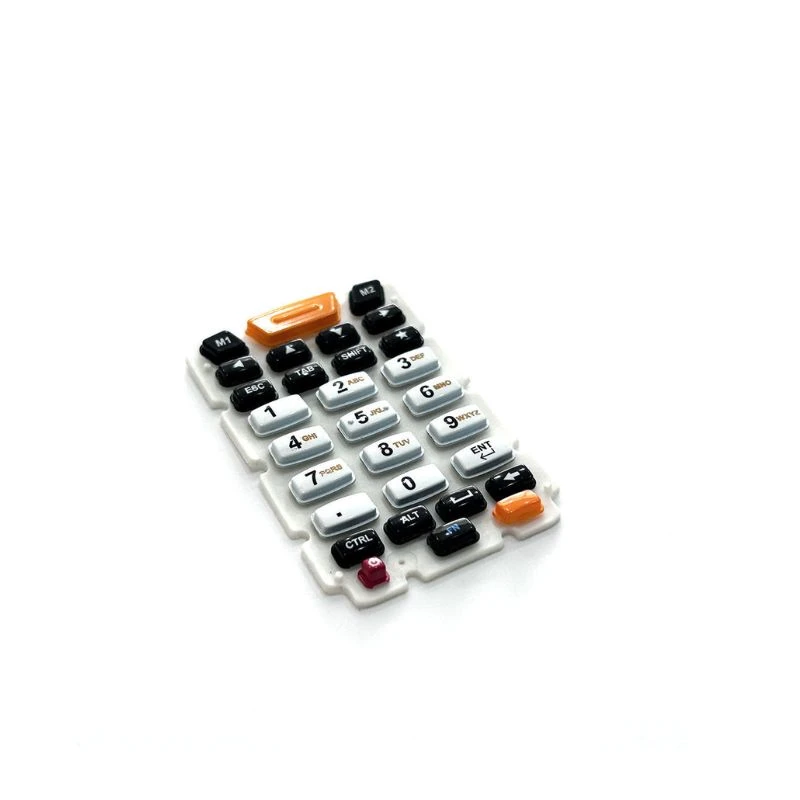

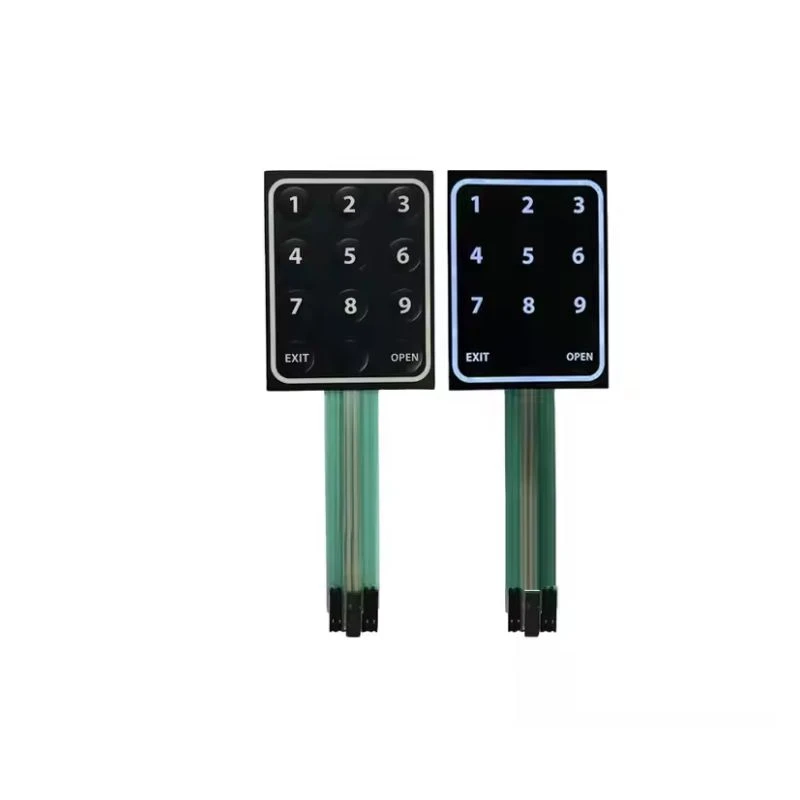

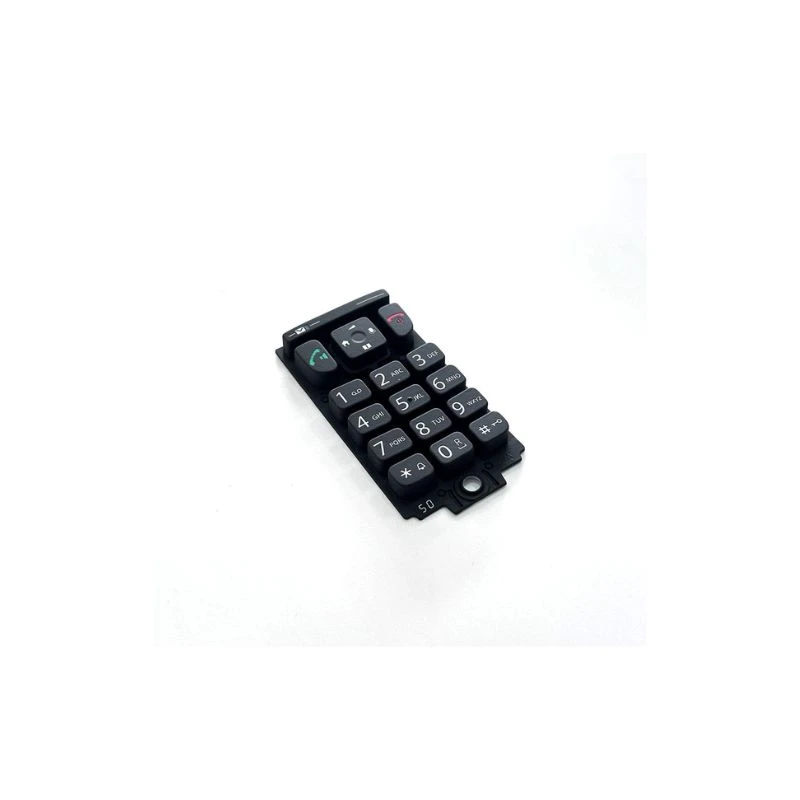

Display
FAQ
What is the lifespan of a membrane switch in a calculator?
SOUSHINE membrane switches are designed for high-volume use. Depending on the specific materials and design, they can typically endure between 1 to 5 million actuations per key, ensuring the long-term durability of the calculator.
Can the feel of the calculator keys be customized?
Yes. We can produce both non-tactile and tactile membrane switches. For a distinct key-press feel, we can integrate metal or polyester domes to provide tactile feedback. The actuation force required to press a key can also be customized to meet specific design requirements.
Are membrane switches resistant to spills?
The top graphic overlay of a membrane switch creates a sealed surface that is inherently resistant to liquids and dust. This makes calculators with membrane keypads more robust and easier to clean compared to those with traditional mechanical keys.
How does a membrane switch connect to the calculator’s main circuit board?
The membrane switch is designed with a flexible tail, which is an extension of the circuit layers. This tail terminates in a connector that securely interfaces with the calculator’s printed circuit board (PCB), transmitting the signals from each keypress.
Why are membrane switches a preferred technology for calculators over other options?
Membrane switches provide an optimal balance of durability, reliability, a low-profile design, and cost-effectiveness for the high-volume production of calculators. Their sealed construction and long operational life make them a superior choice for a device that is handled frequently.
