In the dynamic market of electronic toys and games, user interface technology is critical for both functionality and product longevity. Membrane switches provide a robust, scalable, and cost-effective solution for control panels in this sector. Their sealed construction and customizable graphics make them an ideal choice for products designed for children, offering durability against spills and rough handling while providing engaging visual designs. SOUSHINE specializes in the research, development, and production of membrane switches tailored to the specific needs of the electronic toy and game industry.
What Are Membrane Switches For Electronic Toys and Games?
A membrane switch is a momentary electrical contact device for activating and deactivating a circuit. In the context of electronic toys and games, it serves as the user interface—the keypad or button panel that a child presses to interact with the device.
Unlike traditional mechanical switches, a membrane switch is constructed from a series of thin, flexible polymer layers. These layers are bonded together with pressure-sensitive adhesives and feature conductive circuits printed directly onto a substrate. The essential layers include:
- Graphic Overlay: The top, visible layer made from durable materials like polyester or polycarbonate. It is custom-printed on the underside with graphics, colors, and button labels, making it resistant to wear.
- Top Circuit Layer: A flexible film with printed conductive traces.
- Spacer Layer: An adhesive layer with cutouts that separates the top and bottom circuits, preventing constant contact.
- Bottom Circuit Layer: A second flexible film with printed conductive traces that align with the top circuit.
- Rear Adhesive: A final layer that bonds the entire switch assembly to the toy’s housing.
How Membrane Switches Function in Electronic Toys
The operation of a membrane switch in an electronic toy is based on a simple and effective principle.
- Initial State: In its resting state, the switch is an open circuit. The spacer layer maintains a gap between the conductive pads on the top and bottom circuit layers.
- Activation: When a user presses a button on the graphic overlay, the flexible top layer deflects downwards. This action pushes the conductive pad on the top circuit layer through the cutout in the spacer.
- Circuit Completion: The top conductive pad makes contact with a corresponding pad on the bottom circuit layer. This contact closes the circuit, sending a signal to the toy’s microprocessor.
- Device Response: The microprocessor interprets the signal and executes the programmed command, whether it’s producing a sound, lighting up an LED, or initiating a game function.
- Deactivation: When the user releases the button, the flexible top layer returns to its original position, breaking the electrical contact and opening the circuit.
For enhanced user experience, tactile feedback can be incorporated using metal or polyester domes embedded within the switch layers. These domes create a distinct “snap” or “click” sensation when a button is pressed, confirming the actuation.
Why Use Membrane Switches for Electronic Toys and Games?
Manufacturers choose membrane switches for electronic toys and games due to a combination of performance, durability, and manufacturing advantages.
- Durability and Resistance: The sealed, multi-layer design provides excellent resistance to moisture, dust, and spills—common hazards for children’s toys. This construction protects the internal electronic components, significantly extending the product’s lifespan.
- Safety and Ease of Cleaning: The smooth, continuous surface of the graphic overlay has no crevices or openings where dirt and grime can accumulate. This makes the surface easy to wipe clean and sanitize, a critical feature for products handled by children.
- Customizable Graphics: The graphic overlay can be printed with a wide array of vibrant colors, intricate designs, and characters, enhancing the toy’s aesthetic appeal and user engagement. The printing is done on the reverse side, so the graphics cannot be scratched or worn off with use.
- Cost-Effectiveness: Membrane switches have a lower per-unit cost compared to mechanical switch assemblies, especially in high-volume production runs typical for the toy industry. The manufacturing process is streamlined, reducing assembly time and labor costs.
- Low-Profile and Lightweight Design: The thin, flexible nature of membrane switches allows for integration into compact and ergonomic toy designs without adding significant bulk or weight.

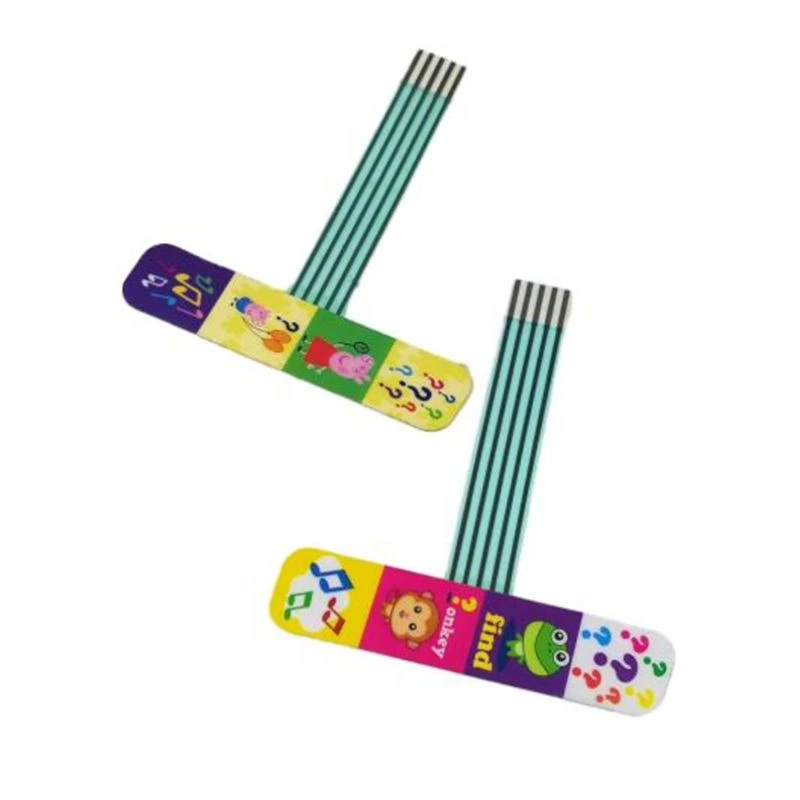

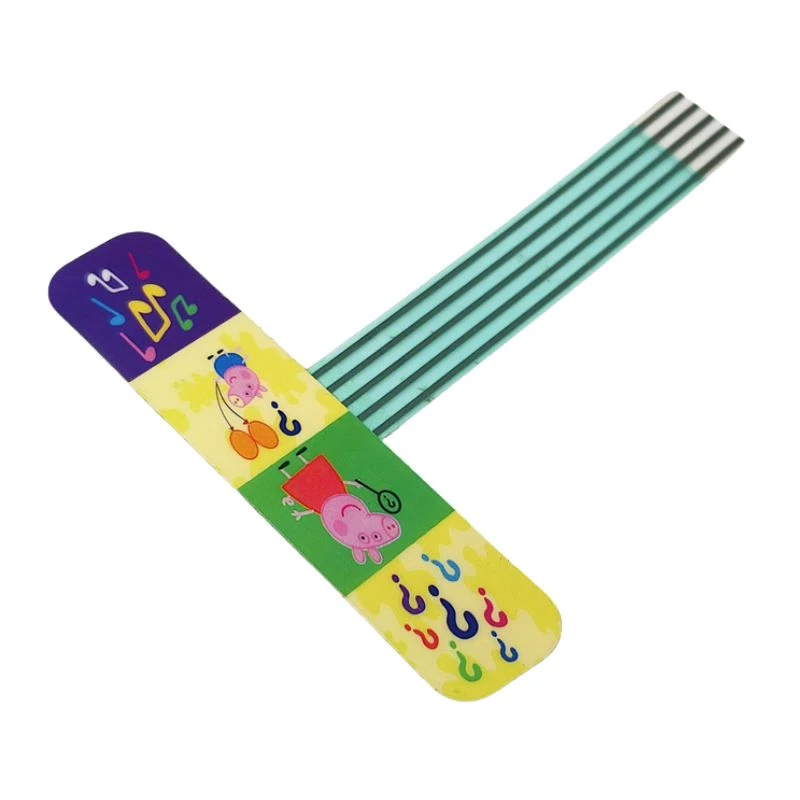

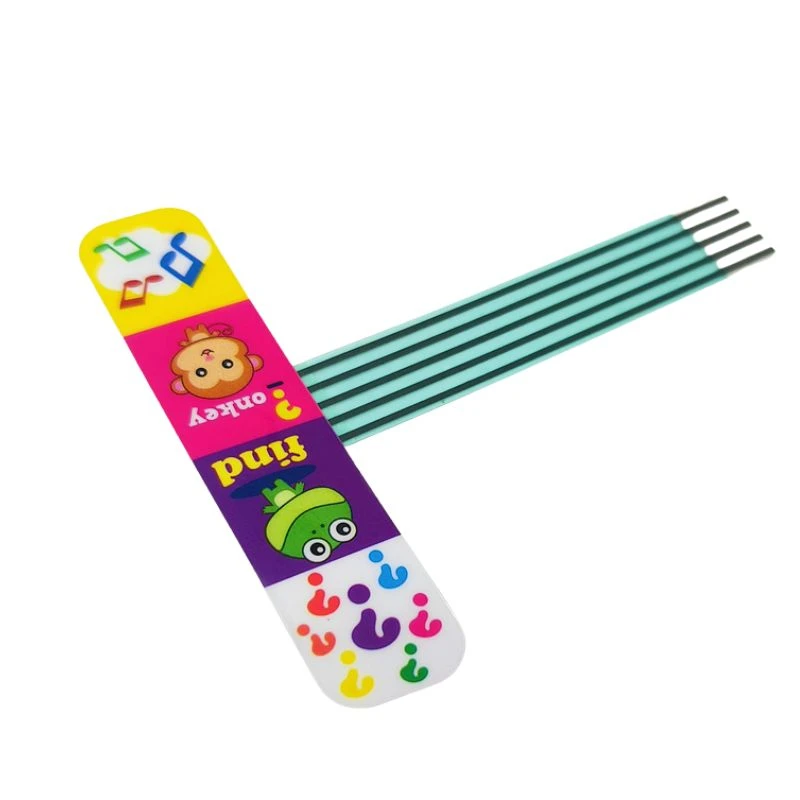

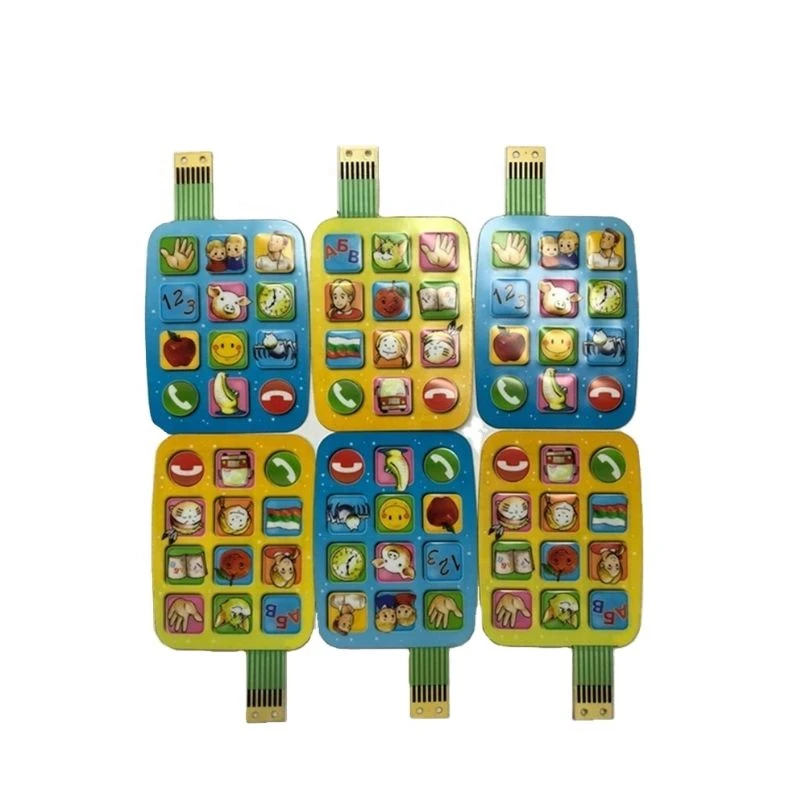

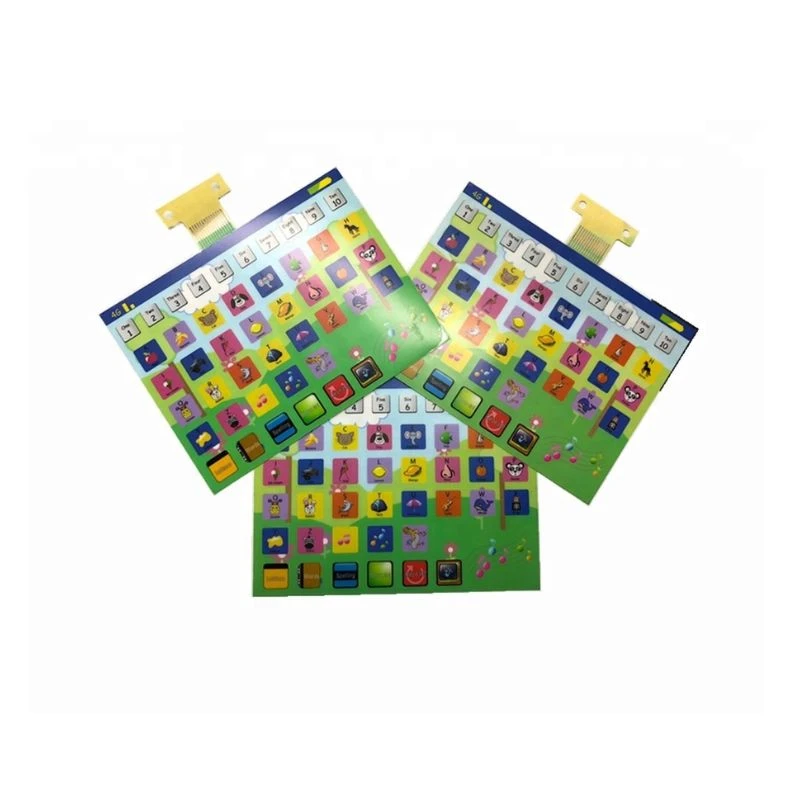

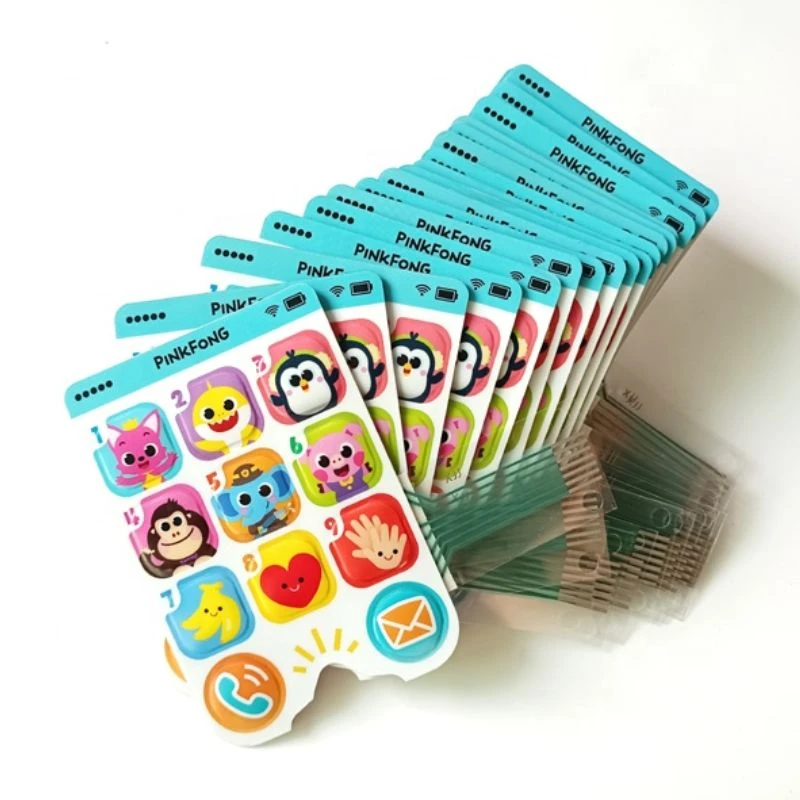

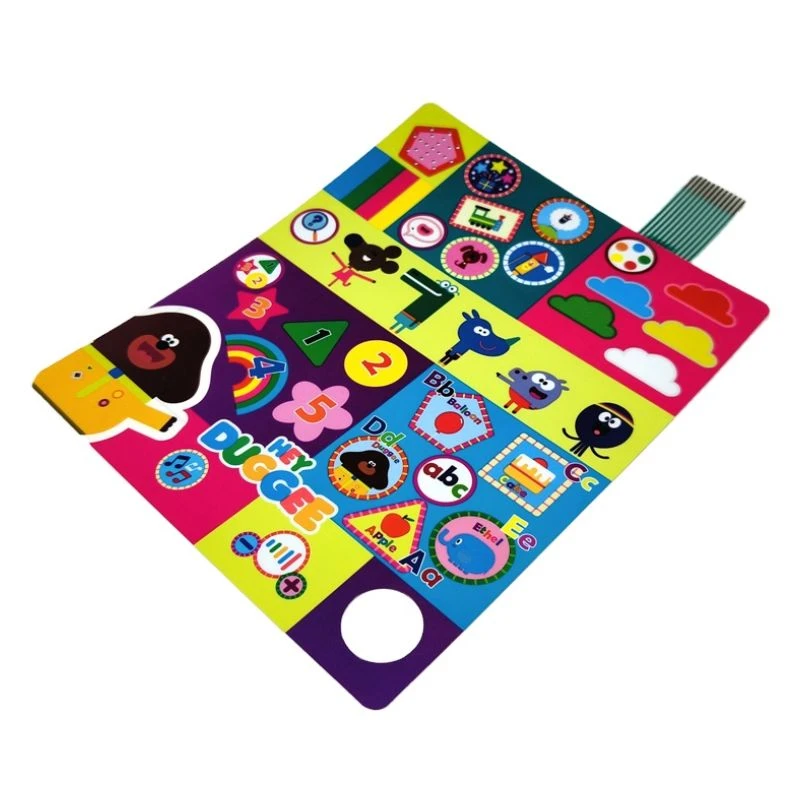

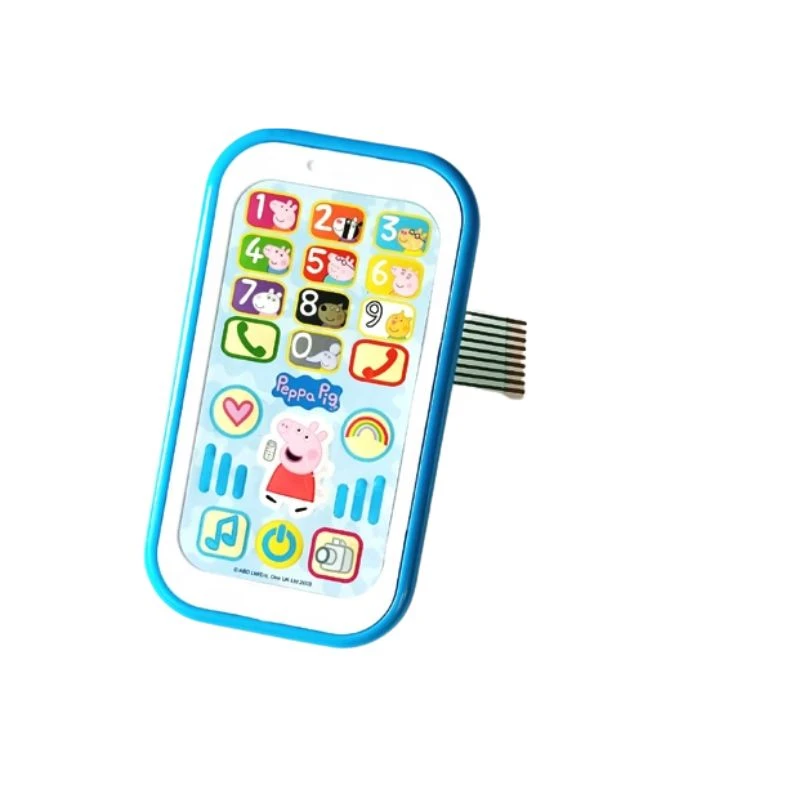

Display
FAQ
What is the typical lifespan of a membrane switch in a children’s toy?
The lifespan of a membrane switch is measured in actuations. Our standard switches are rated for a minimum of one million actuations, ensuring high durability even with repetitive use. The specific lifespan can be engineered based on the choice of materials and design to meet the demands of the application.
Can the feel of the buttons be customized?
Yes. We offer both non-tactile and tactile feedback options. Non-tactile switches have a smooth, silent press. For tactile feedback, we integrate metal or polyester domes that provide a distinct “click” sensation, which can improve user accuracy and satisfaction. The actuation force required to press the button can also be customized.
Are the materials used in your membrane switches safe for children?
All materials used in our membrane switches comply with international safety standards, including RoHS. The graphic overlays are printed on the subsurface, meaning the inks are not on the outer layer, preventing direct contact and wear.
How resistant are these switches to spills?
Our membrane switches are designed with a sealed construction that provides a high degree of resistance to liquids. They can be engineered to meet specific Ingress Protection (IP) ratings, such as IP65, making them resistant to splashes and spills.
Can you incorporate backlighting or indicator lights into the toy’s keypad?
Absolutely. We can embed LEDs within the membrane switch assembly to serve as indicator lights (e.g., a power-on light) or to provide backlighting for play in low-light conditions. This is integrated seamlessly into the switch layers.
What is the process for developing a custom membrane switch for our new toy?
The process begins with your design concept. Our engineering team will work with you to define the specifications, including dimensions, button layout, graphic design, and electrical requirements. We then produce prototypes for your approval before proceeding to mass production.
Can the graphic overlay include complex shapes and cutouts for screens?
Yes. The graphic overlay is highly customizable. Using precision die-cutting, we can create custom shapes, intricate button designs, and transparent windows for integrating LCD or LED displays.
