Industrial automation environments demand robust and reliable human-machine interfaces (HMIs). Control systems in these settings are frequently exposed to dust, moisture, chemicals, and repeated use. SOUSHINE provides high-performance membrane switches designed specifically for the operational demands of industrial automation equipment, ensuring precise and consistent control where it matters most. Our membrane switches are integral components in a wide range of automation machinery, offering a dependable interface between the operator and the system.
What is a Membrane Switches for Industrial Automation?

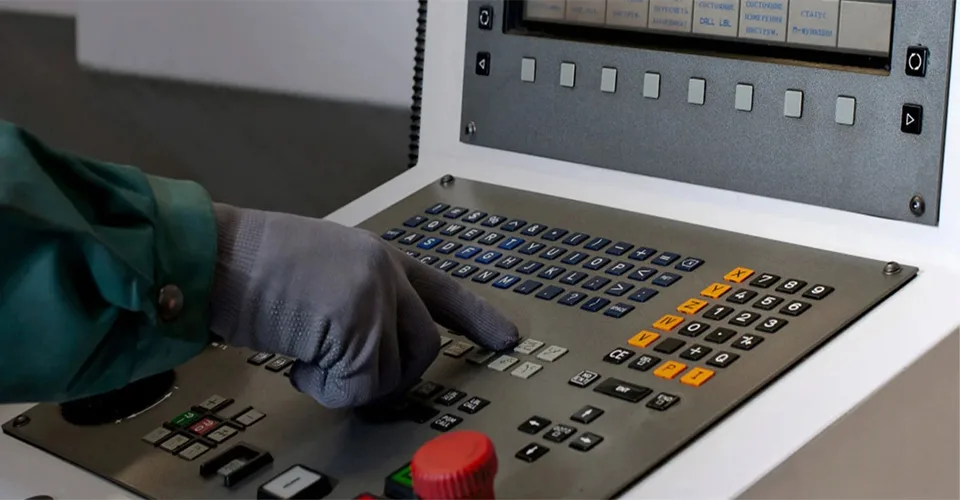

A membrane switch is a multi-layered, printed electronic component that functions as a user interface for controlling equipment. In the context of industrial automation, it is the frontal control surface of a device, such as a Programmable Logic Controller (PLC) or a robotic control pendant.
Unlike mechanical switches, a membrane switch consists of flexible substrate layers with conductive inks printed on them. When a specific point on the surface is pressed, it flexes through a spacer layer, causing a conductive pad on the top circuit layer to make contact with a pad on the bottom circuit layer. This action closes the circuit and sends a command to the underlying control system. The entire assembly is sealed, providing a low-profile and durable interface.
How Membrane Switches are Integrated into Automation Equipment
The integration of a SOUSHINE membrane switch into an industrial automation system is a direct and efficient process. The switch assembly terminates in a flexible tail, which is a flat, ribbon-like cable extending from the circuit layers.
This flexible tail is connected to the main control board (PCB) of the automation equipment, such as an HMI panel or a motor controller. The connection is typically made using a ZIF (Zero Insertion Force) or LIF (Low Insertion Force) connector. This method provides a secure and reliable electrical connection while maintaining the low-profile nature of the interface.
Because the switch logic is contained within the sealed layers of the membrane switch, it simplifies the overall equipment design. There is no need for individual mechanical button cutouts, reducing assembly time and points of potential ingress for contaminants. This streamlined integration process makes membrane switches a cost-effective and reliable solution for complex control panel designs.
Why Use Membrane Switches in Industrial Automation?
Membrane switches provide key advantages for industrial automation controls in demanding environments. Their sealed construction delivers high IP-rated protection against dust, moisture, and chemicals, while the smooth surface is easy to sanitize. Engineered without moving parts, they offer exceptional durability, often exceeding 1 million actuations. The interface is fully customizable with brand-specific graphics and can integrate features like embedded LEDs, backlighting, and tactile feedback. Their low-profile design saves significant space compared to traditional mechanical switch panels, enabling more compact equipment.
Display
FAQ
What is the typical lifespan of a membrane switch in an industrial setting?
Our membrane switches are engineered for high reliability and are typically rated for over 1 million actuations. The actual lifespan depends on the specific materials chosen and the operating environment.
Can membrane switches be used in environments with chemical exposure?
Yes. We select materials for the graphic overlay, such as polyester, that offer superior resistance to a wide range of industrial chemicals, solvents, and cleaning agents. Please provide your specific chemical exposure requirements for material selection.
Is it possible to incorporate backlighting into the membrane switch design?
Absolutely. We can integrate various backlighting technologies, including LED and fiber optics, to illuminate specific keys, text, or the entire panel for enhanced visibility in low-light conditions.
How do you ensure the reliability of the electrical connection to our equipment?
The flexible tail termination is designed for a secure connection to standard ZIF/LIF connectors on your PCB. We can customize the tail length, pitch, and pinout to match your specific hardware requirements, ensuring a robust and stable electrical interface.
Can tactile feedback be included in the switches?
Yes, we offer multiple tactile feedback options. Metal domes provide a distinct “snap” feel, while embossed polydomes on the graphic overlay offer a softer tactile response. We can tailor the actuation force to meet your application’s needs.
