The control panel is the primary user interface for any modern microwave oven. It must be intuitive, reliable, and capable of withstanding the demanding environment of a kitchen. SOUSHINE specializes in the design and production of custom membrane switches that serve as the functional and aesthetic core of microwave control panels, providing a seamless interface between the user and the appliance’s technology.
What is a Membrane Switch for a Microwave Oven?
A membrane switch for a microwave oven is a multi-layered, printed electronic component that functions as the user interface. It replaces traditional mechanical buttons with a low-profile, sealed keypad. The switch is constructed from flexible polymer films, such as polyester and polycarbonate, upon which conductive circuits are printed. A typical construction includes:
- Graphic Overlay: The top layer, customized with button graphics, branding, and colors. It serves as the durable, protective surface that the user interacts with.
- Circuit Layers: One or more layers of polyester film with screen-printed conductive silver or carbon traces.
- Spacer Layers: Adhesive layers that create a gap between the circuit layers, preventing the switch from being constantly “on”.
- Rear Adhesive: A final layer that bonds the entire switch assembly to the microwave’s housing.
How Do Microwave Membrane Keypads Work?
The functionality of a membrane switch is based on a momentary-contact principle.
- Pressure Application: When a user presses a specific button on the graphic overlay, the flexible top layer deforms.
- Circuit Closure: This pressure pushes the conductive trace on the upper circuit layer through the cutout in the spacer layer, making contact with the conductive trace on the lower circuit layer.
- Signal Transmission: The contact closes the circuit, generating an electrical signal. This signal is transmitted via a flexible tail connector to the microwave’s main processing unit (PCB).
- Function Actuation: The PCB interprets the signal and executes the corresponding command, such as setting the time, starting the cooking process, or selecting a power level.
For enhanced user experience, metal or polyester “tactile domes” can be integrated beneath the overlay, providing a distinct “snap” or click feeling upon actuation.
Why Use SOUSHINE Membrane Switches for Microwave Panels?
Integrating a SOUSHINE membrane switch into a microwave oven design offers significant advantages for manufacturers focused on performance, durability, and production efficiency.
- Environmental Sealing: The sealed, single-surface design is inherently resistant to moisture, dust, grease, and cleaning agents commonly found in kitchens. This prevents contaminants from reaching the internal electronics, significantly increasing the appliance’s lifespan and reliability. It allows for designs achieving IP65 or higher ratings.
- Design Freedom and Customization: Our technology allows for complete customization of the user interface. This includes custom shapes, sizes, button layouts, colors matching Pantone (PMS) standards, and transparent display windows for LEDs or LCDs. Company logos and branding can be printed with high clarity on the durable subsurface of the overlay.
- Durability and Reliability: Manufactured with robust materials like polyester, our membrane switches are tested for millions of actuations. The graphics are printed on the reverse side of the overlay, protecting them from wear, abrasion, and chemical exposure.
- Low-Profile Integration: The thin, flexible nature of a membrane switch allows for sleek, modern, and space-saving product designs. It integrates seamlessly onto the product housing without the bulk of traditional mechanical switches.
- Cost-Effectiveness: With a simplified construction and fewer components compared to mechanical button assemblies, membrane switches reduce assembly time and overall bill of materials (BOM) cost, especially in high-volume production.

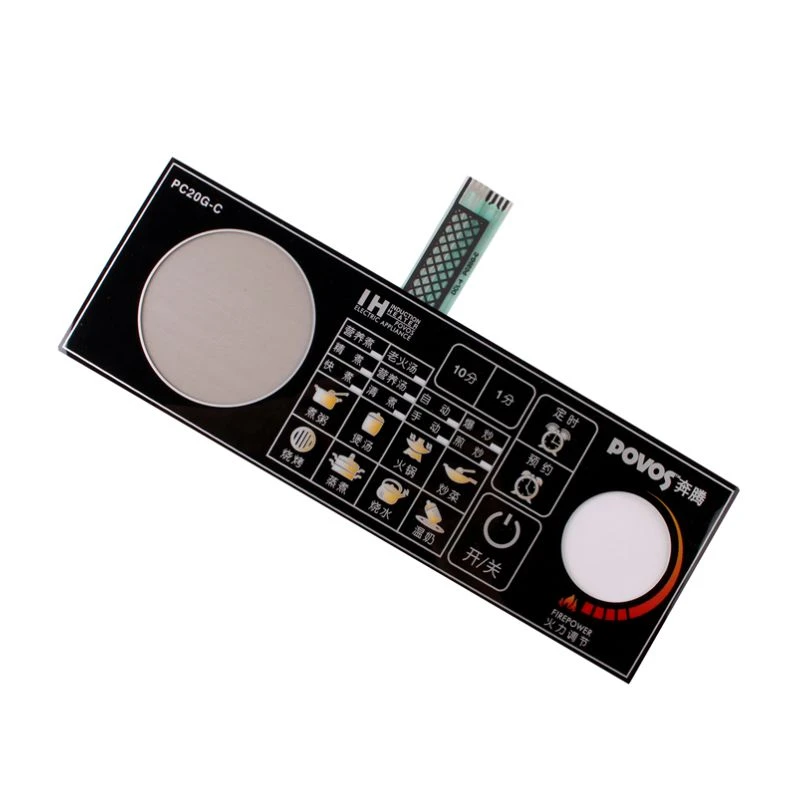

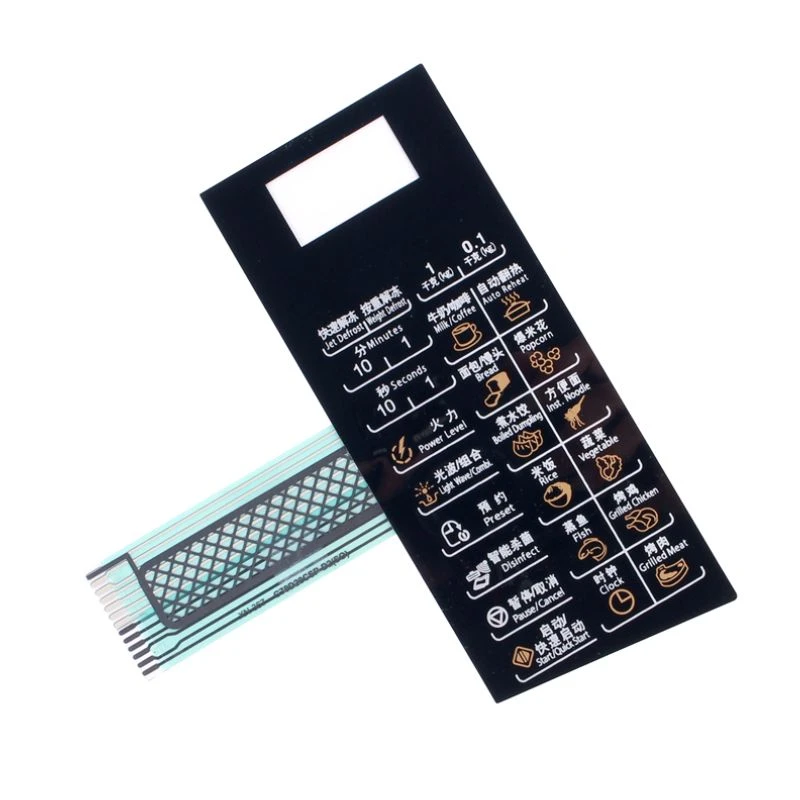

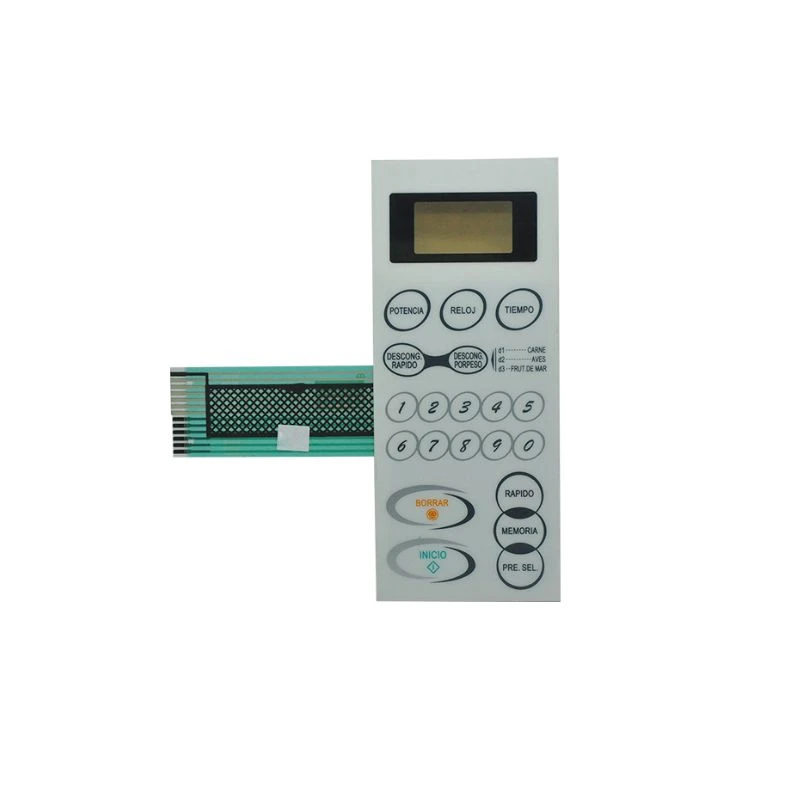

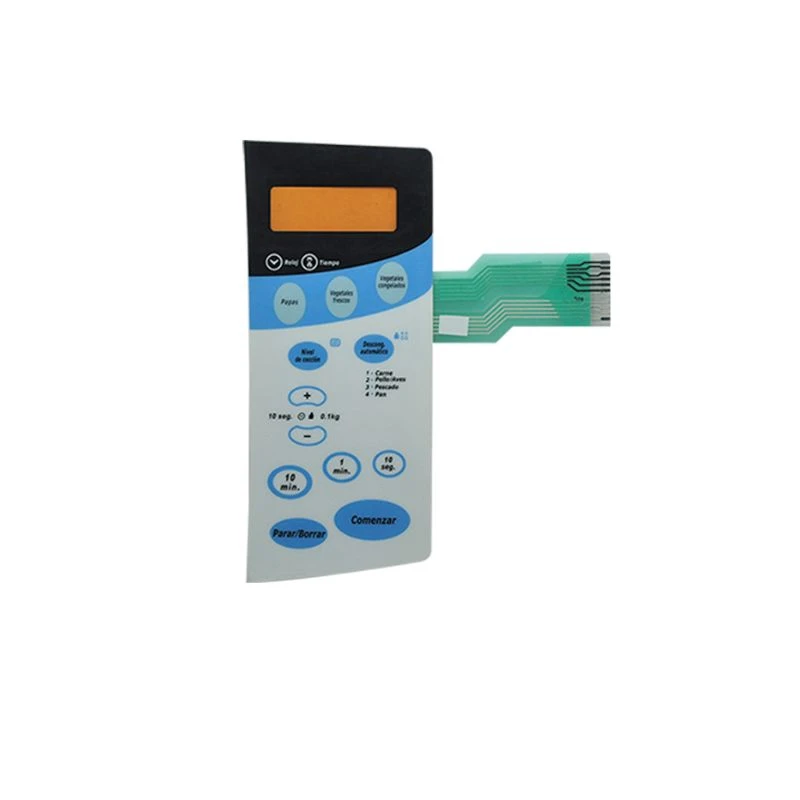

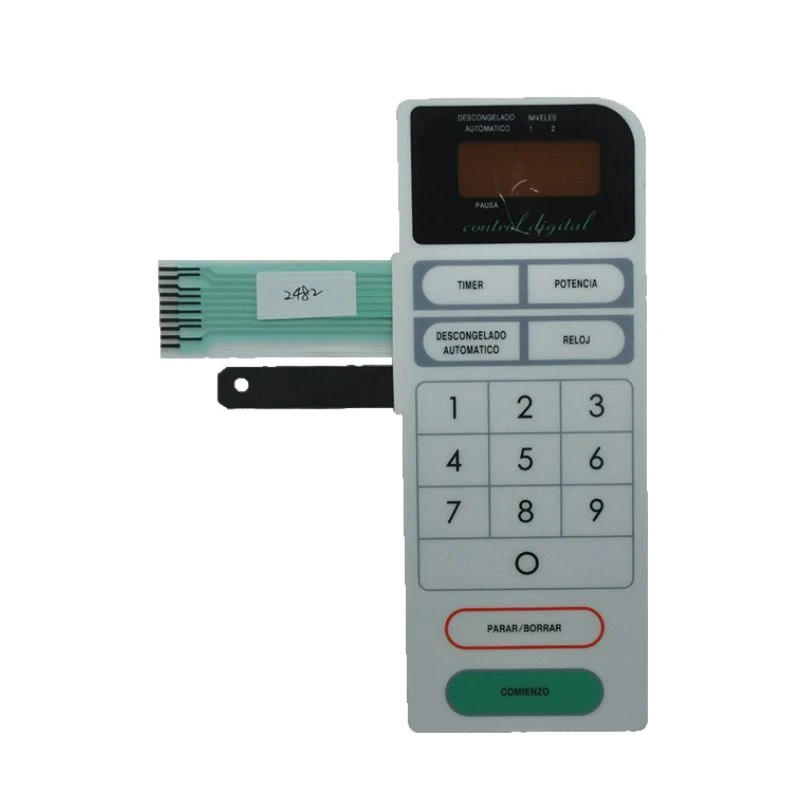

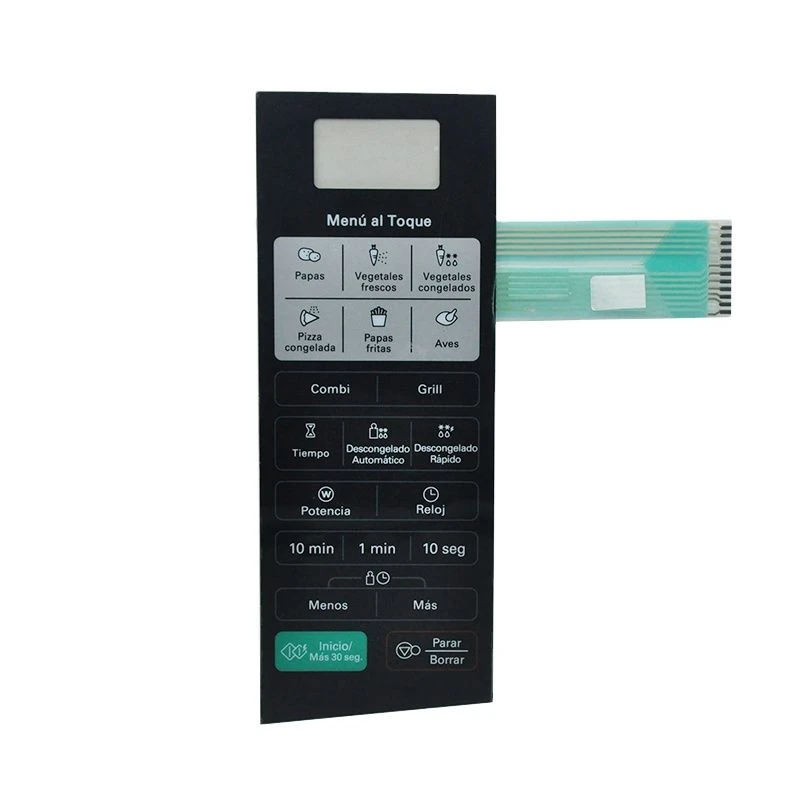

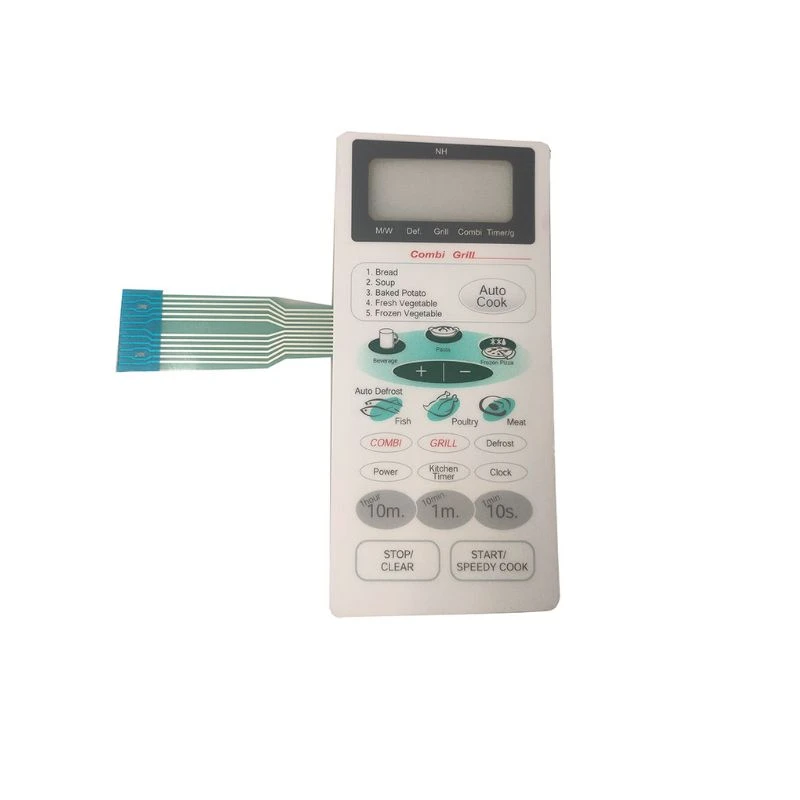

Display
FAQ
What is the operational lifespan of a SOUSHINE membrane switch in a microwave application?
Our membrane switches are engineered for high reliability and are typically rated for over 1 million actuations, ensuring consistent performance for the entire lifecycle of the appliance.
Can the control panel include clear windows for digital displays?
Yes. We can design the graphic overlay with optically clear, transparent windows for seamless integration with underlying LCD or LED displays. The window finish can be customized (e.g., clear, anti-glare) to optimize readability.
How do your microwave keypads resist common kitchen cleaning chemicals?
The top layer is typically made of high-quality polyester, a material with excellent chemical resistance to a wide range of common household cleaners. Since the graphics are reverse-printed, they are permanently protected from chemical exposure and physical abrasion.
Can tactile feedback be incorporated into the buttons?
Absolutely. We offer various tactile feedback options, including stainless steel tactile domes and poly-domes formed into the circuit layer itself. These provide positive confirmation to the user that a button press has been registered. Non-tactile options are also available.
What information is required to start a custom microwave panel project with SOUSHINE?
To provide an accurate quotation and begin the design process, we typically require a schematic or circuit diagram, a bill of materials (if specific components are needed), and a vector-based art file (e.g., .AI, .DXF) for the graphic overlay. Our engineering team is available to assist you with these requirements.
