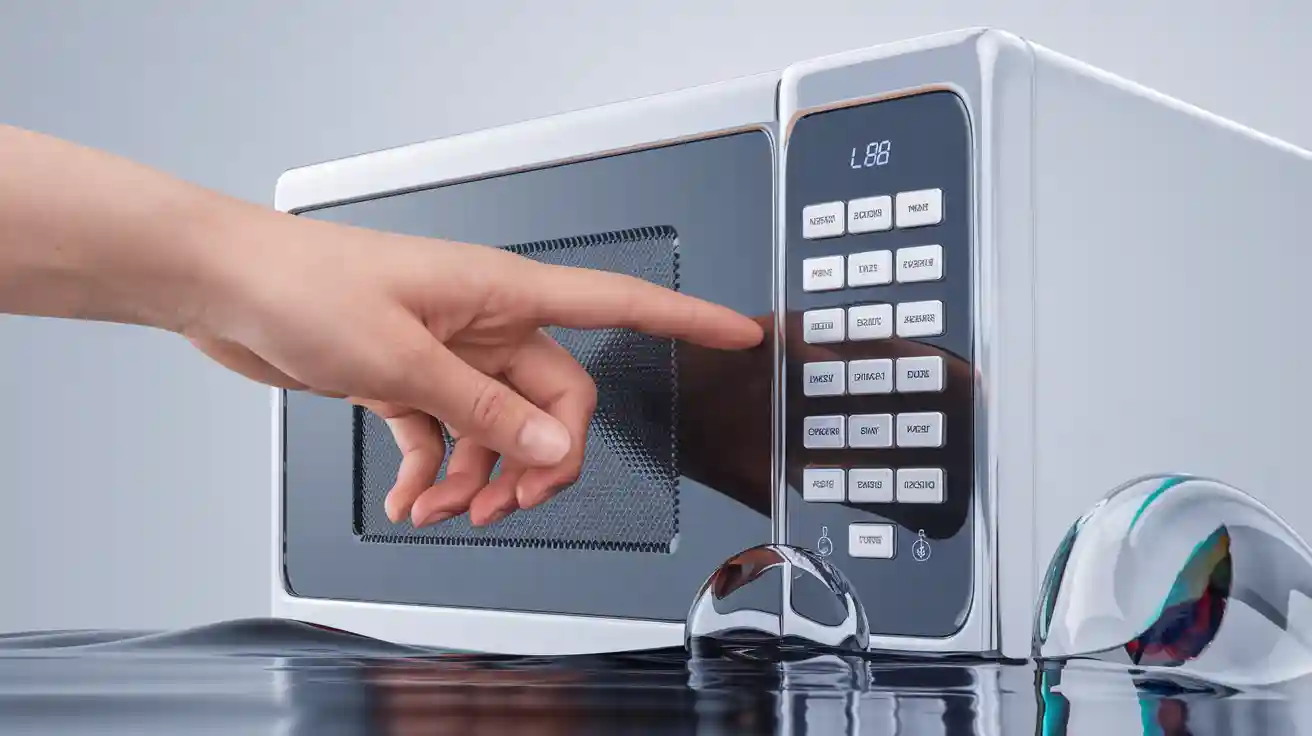

How Membrane Switches Power Modern Microwave Oven Control Panels

Membrane switches are very important in every modern microwave oven control panel. These switches turn each button press into a quick and correct action. This helps people use their microwave easily and safely.

• The flat, sealed design keeps out dirt and water, so you can clean it with a quick wipe.
• There are fewer moving parts, so the microwave lasts longer and breaks less often.
• Special coatings stop scratches and chemicals, and antibacterial surfaces help keep things clean.
  SOUSHINE’s membrane switch technology gives all these good things, so using the microwave is easy and works well. Some microwaves even use a force sensing resistor for more exact control.

Key Takeaways

• Membrane switches help make microwave panels thin and strong. They are also easy to clean. They give a clear feel when you press a button. This helps users know the button works. The sealed design keeps out water, dust, and dirt. This helps the panels last a long time. Membrane switches let you control cooking time and power fast. They also help you pick different cooking modes. Brands can choose colors and button styles they like. They can also add backlighting if they want. These switches work well in busy kitchens. They still work if there are spills or steam. The materials are strong and easy to clean. This keeps microwaves safe and looking nice. In the future, membrane switches will get smart features. They will also use materials that are better for the planet.

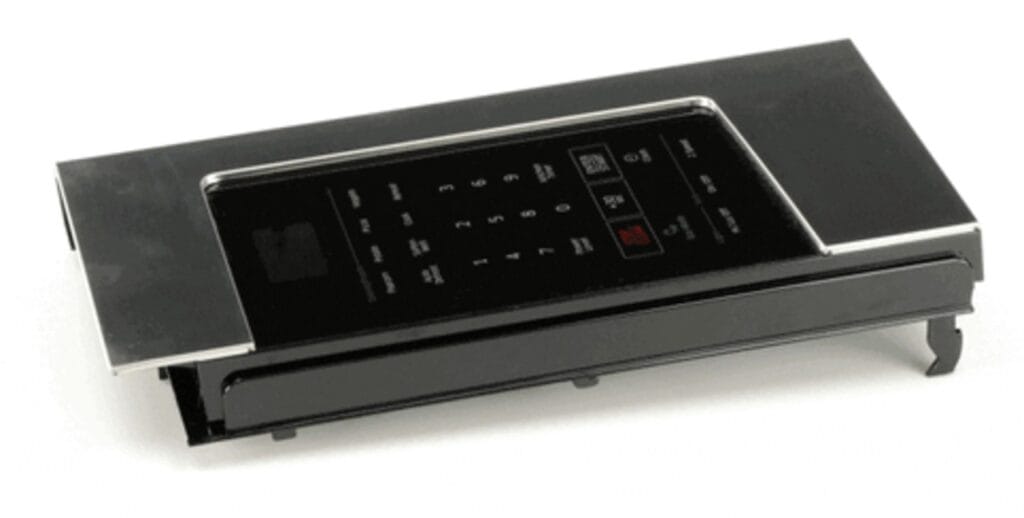

Role in Control Panels

User Interface

Membrane switches are the main way people use the microwave control panel. This technology gives a flat and bendy surface that feels smooth. The buttons have clear pictures and space between them. This helps people find the right button fast. When you press a button, you feel a small bump or click. This lets you know the button worked. It helps people feel sure and make fewer mistakes. The sealed top keeps out water and dirt, so cleaning is simple. Special pictures and lights help you see the buttons, even when it is dark. The look of the panel can be changed for each brand. Membrane switches also let microwaves have cool things like LED lights and touch controls.

• Membrane switches make a thin, strong panel.
• Buttons are spaced out to stop mistakes.
• You feel a bump when you press a button.
• Lights and pictures help you see the buttons.
• The sealed top makes cleaning easy.

Functionality

Membrane switches are the electric part of the microwave control panel. When you press a button, the top layer bends down. It touches the bottom layer and closes the circuit. This sends a signal to the microwave’s computer. The microwave then heats food, sets a timer, or changes the mode. This makes the panel easy to use. The electronic part can handle many commands, like power, defrost, and quick start. Modern microwaves use membrane switches because they work well with lots of use. The control panel must answer fast and right every time. Membrane switches help by making each press count.

• Membrane switches let you heat, set time, and pick modes.
• The panel is quick and simple to use.
• It works even if you are in a rush or it is dark.

Reliability

Reliability is very important for microwave control panels. Membrane switches work well, even after many uses. The sealed layers keep out water, dust, and chemicals. This keeps the panel working in kitchens with spills and steam. Better materials and ways to make them help switches last longer. Some can work for billions of presses without breaking. The sealed cover and clean making process stop problems like bad contacts. These switches also do not break from static or power surges. People can trust their microwave will work safely for a long time.

• Membrane switches are very reliable every day.
• The sealed design keeps out water and dirt.
• Better materials and covers make the panel last longer.
• Good performance keeps using the microwave safe and easy.

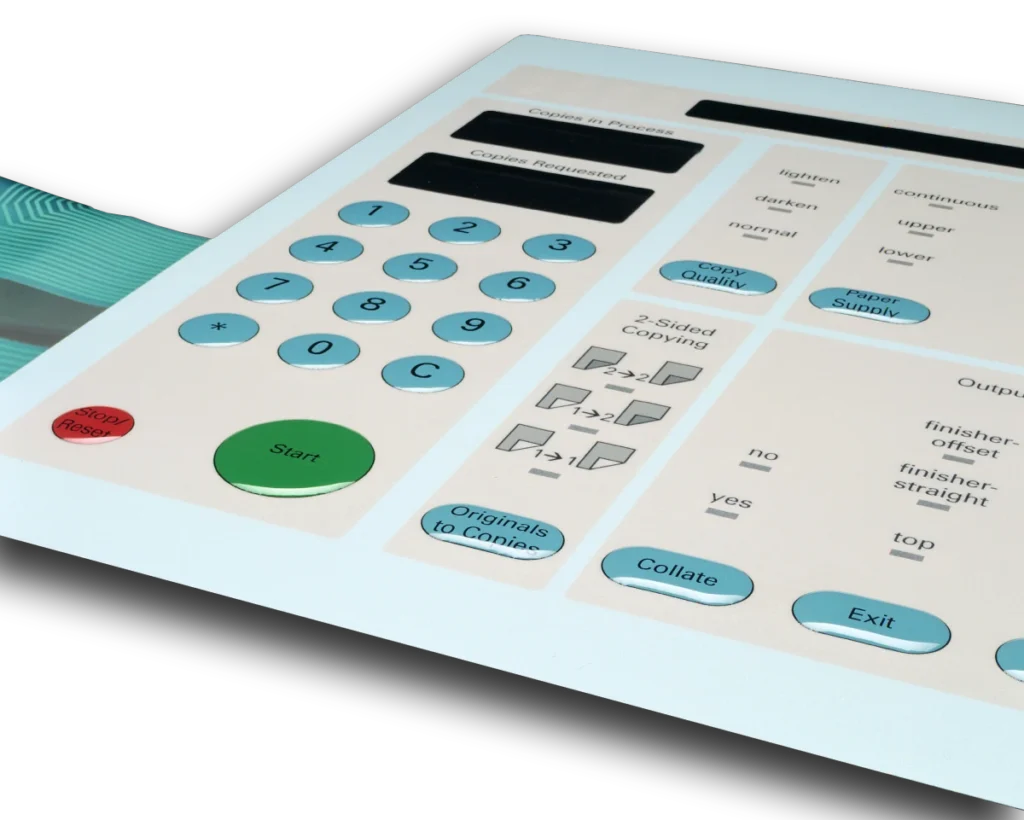

What Is a Membrane Switch

Structure

A membrane switch has a simple and small design. Most have three main layers. The top and bottom layers are thin films. Each film has contact pads and lines that carry electricity. There is an adhesive mask between the films. This mask has small holes. When you press a button, the top film bends down. The contact pads touch through the hole. This closes the circuit and sends a signal.

• There are three layers: top film, adhesive mask, bottom film.
• Each film has contact pads and lines.
• The adhesive mask has holes for pressing.
• The layers are flexible and help each press work.

This design keeps the panel thin and strong. It works well for microwave oven panels. The sealed top keeps water and dirt out.

Operation

Membrane switches change a press into an electric signal. When you press a button, the top layer bends. The contact pads meet through the hole in the mask. This closes the circuit for a short time. The microwave gets this signal and starts the function you picked.

The buttons feel smooth and fast. Some switches give a small “click” feeling. Others stay flat and quiet. Both types help you use the microwave easily. The sealed top keeps out spills and dust.

Tip: The sealed top of membrane switches makes cleaning easy and helps the panel last longer.

Types

There are different types of membrane switches. Each type is good for different kitchen needs.

• Tactile membrane switches give a “click” when pressed. This helps you know the button worked. Many microwaves use this type.
• Non-tactile membrane switches do not click. They are flat and smooth. This type is easy to clean and looks modern.
• Backlit membrane switches have lights under the surface. These lights help you see the panel in the dark. Fancy microwaves often use this type.
• Waterproof membrane switches have extra sealing. They keep out water and dust. This type is good for kitchens with lots of spills.

Each type helps make a strong and easy-to-use panel for microwaves and other kitchen tools.

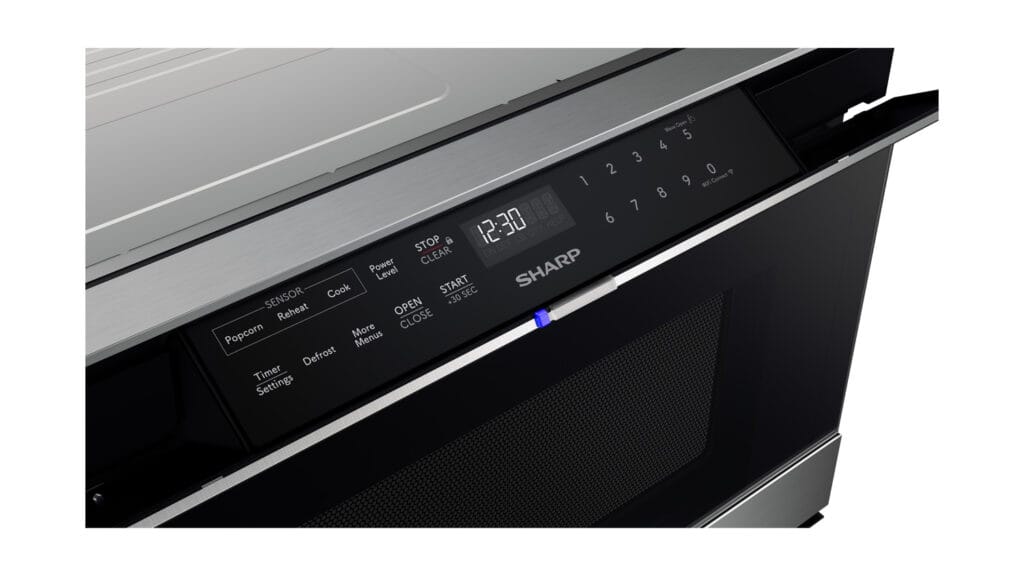

Microwave Oven Control Panel Integration

Placement

Manufacturers put membrane switches right under the control panel surface. The assembly has several thin layers stacked together. The top layer shows the button names and pictures. Underneath, there are circuit and adhesive layers that seal everything. This keeps the switches thin and strong. The sealed layers stop dust, water, and spills from getting in. The whole assembly sticks tightly to a hard backing. This helps the switches fit well under the control panel. The thin design keeps microwaves small and easy to clean. This placement also lets backlighting and button feedback work better for users.

Input Mechanism

The input system uses a special design for the control panel. The membrane layer is made from strong, bendy materials like polyester or polycarbonate. The top layer shows clear symbols and names for each button. When you press a button, the top layer bends down. Conductive lines underneath touch and send a signal to the microwave’s controller. This matrix design uses less wiring and keeps the panel thin. The switches are quiet and give a soft feel when pressed. The sealed surface blocks dust, water, and chemicals. This helps the control panel last longer in busy kitchens. The graphic overlay gives clear signs, sometimes with lights, so you can find buttons fast. The input system makes using the microwave easy and safe.

• Membrane switches use rows and columns to send signals well.
• The design keeps the control panel simple and strong.
• The surface is easy to wipe clean after using.

Note: Membrane switches are thin and bendy, so they are great for microwaves where space and strength are important.

Customization

Custom membrane switches let makers design control panels for special needs. There are many choices for materials, colors, glue, button types, and extra features. The table below lists some common options:

Custom membrane switches can have LED lights, raised buttons, and special finishes. These features help brands make unique control panels for microwaves. Makers can match colors to their brand and pick the best button style. Custom membrane switches work for both old and new controls. This helps microwaves look different and meet what users want.

Benefits

Durability

Durability is a big reason why membrane switches are used. Makers use strong materials like polyester to build them. This helps the switches stand up to water, dust, and being pressed a lot. Many kitchen tools use membrane switches because they last a long time. The sealed design keeps water and dirt out. This protects the inside parts from damage. The layers can bend and press many times without breaking. Some switches even work well in wet or hot places. These things make membrane switches great for busy kitchens.

• Membrane switches block spills and dust.
• They keep working after lots of use.
• Bendy layers help them last longer.

Note: Many electronics use membrane switches because they work well in tough places.

Easy Cleaning

Easy cleaning is another big benefit of membrane switches. The flat, sealed top stops dirt, water, and food from getting in. This keeps the inside safe from messes. You can wipe the panel with a damp cloth or wipe. The smooth top does not hold crumbs or grease. This makes it easy to keep the panel clean. In kitchens, spills happen a lot, so this saves time. The sealed layers also stop cleaning sprays from hurting the panel.

• The flat top lets you clean fast.
• No cracks mean less food or dirt gets stuck.
• The sealed cover keeps liquids out.

Tip: A clean panel helps keep your kitchen safe and healthy.

Design Flexibility

Design flexibility gives makers lots of choices. Membrane switches are very thin, often less than 1 mm thick. This slim shape fits well in new, small microwaves. Makers can pick different colors, shapes, and button layouts. They can add lights, raised buttons, or cool pictures. Some panels have domes for a click, others are flat for a smooth look. Extra layers can be added for blocking EMI or water. These choices help brands make special and easy-to-use microwave panels.

Membrane switches are easy to clean, last a long time, and can be made in many ways. These things help microwave panels work well and last longer.

Construction

Layers

Membrane switches are made with several thin layers. Each layer has its own job. The table below lists the main layers in good membrane switches like SOUSHINE’s:

This design helps membrane switches work well in microwaves. The sealed top keeps out water and dirt. This is important in kitchens. SOUSHINE uses strong materials and careful building. This makes sure each layer works right.

Tactile Feedback

Tactile feedback lets you know when a button is pressed. SOUSHINE puts metal domes in the upper circuit layer. When you push a button, the dome snaps down. You feel a clear “click” under your finger. This tells you the microwave got your command. The domes can be pressed millions of times. This keeps the panel working well. Tactile feedback makes the panel easier to use. You do not have to guess if the button worked. This helps stop mistakes and makes using the microwave nicer. Some panels also use LED lights. These lights help you see the buttons when it is dark.

Tip: Tactile feedback helps you feel sure and makes the panel easier to use.

Protection

Membrane switches have many ways to protect the control panel. SOUSHINE uses special methods to keep switches safe and working:

• EMI/RFI shielding uses printed silver grids or clear films to block electrical noise.
• Good grounding of the shield layer gives better protection from interference.
• Waterproofing uses epoxy, silicone gaskets, and strong glue to keep water and dust out.
• The sealed top meets high standards for water and dust, like IP67 ratings.
• These switches pass tough tests for safety and strength.

These features help membrane switches last longer in kitchens. The sealed, smooth top is easy to clean. This keeps the microwave control panel safe from spills and dirt. SOUSHINE’s membrane switches are made for busy kitchens. They give strong protection and are simple to clean.

User Experience

Intuitive Use

Microwave oven control panels must be simple for everyone. Membrane switches help make the controls easy to use. The flat panel shows clear icons and words. People can find the right button fast. When you press a button, you feel a small bump or click. This tells you the microwave got your command. Bright symbols and lights help you see the buttons in the dark. The buttons are spaced out to stop mistakes. Kids, adults, and older people can all use the panel without trouble. The design helps everyone feel sure when cooking or heating food.

Tip: Clear pictures and feeling a click make microwaves easy, even for new users.

Maintenance

It is important to keep the microwave control panel clean and working. Membrane switches only need simple care. Wipe the panel with a damp cloth and mild soap. Do not use strong cleaners because they can hurt the membrane. If you spill something, clean it up right away. This stops liquid from getting inside. Using a microwave cover can keep splatter off the panel. Press the buttons gently and do not slam the door. This keeps the switches safe.

• Wipe the panel with a damp cloth and mild soap.
• Do not use strong cleaners that can hurt the membrane.
• Clean spills fast to stop liquid from getting inside.
• Use a cover to keep splatter away.
• Press buttons softly and do not slam the door.
• Keep the microwave in a place with good air flow.

After a few years, membrane switches might wear out. If buttons stop working, you can replace the switch. Sometimes, fixing loose wires or cleaning with alcohol helps. People who know how can change the panel, or they can ask someone for help.

Performance

Membrane switches help microwaves work well every day. The table below shows how these switches help:

Membrane switches let you set cooking time, power, and modes exactly. The strong panel works well, even if you use it every day. The smooth top is easy to clean and keeps the microwave looking nice. You can change the switch fast, and simple care keeps the microwave working well.

SOUSHINE Solutions

Product Features

SOUSHINE makes membrane switches for microwave oven panels. These switches are strong and easy to use. Each one gives a reliable way to control the microwave. They work well in busy kitchens. The table below lists what makes SOUSHINE special:

SOUSHINE’s membrane switches help microwave makers build panels that last longer and work better.

Innovations

SOUSHINE started with simple keypads. Now, they make smart and advanced panels. Early switches had basic layers and circuits. Today, SOUSHINE adds things like LED lights and EMI/RFI shielding. They also give better tactile feedback. These new features help people use the panel in any kitchen. The sealed surface keeps water and dust out. This protects the electronics for many years. SOUSHINE’s engineers design each panel for modern appliances. They use bendy materials and new printing to make custom designs. This helps brands look different and give users a better experience.

SOUSHINE’s growth shows they want to make smarter and more helpful control panels for homes.

Choosing the Right Switch

Picking the best membrane switch for a microwave means checking some important things. The table below shows what to look for:

The material you pick is important too. Polycarbonate overlays are tough and handle heat well. Polyester overlays resist chemicals and weather, so they are good indoors. The right overlay keeps the panel looking nice and working every day.

When making the circuit, engineers choose copper or silver for the lines. They set the width and space to fit and work well. The layout stops wrong touches and spreads pressure evenly. Low resistance helps stop problems like ghosting.

Tip: Picking the right membrane switch helps the microwave panel last long and stay safe and easy to use.

Future Trends

Interface Design

Microwave oven control panels keep changing with new technology. Designers add smart features to membrane switches. These features help the microwave link to other kitchen devices. Many new panels use the Internet of Things (IoT). This lets people control the microwave from a phone or tablet. Cooking becomes easier and more flexible.

Modern panels use better materials for longer life. Some companies use graphene, which helps switches last longer and work better. Many brands now pick eco-friendly designs. They use materials and ways that help protect the earth.

Other trends in interface design are:

• Special coatings stop scratches and stains.
• Raised keys give a clear feel when pressed.
• Custom overlays show logos and easy symbols.
• Backlights help you see buttons in the dark.
• Fast design and custom layouts meet user needs.

Designers want panels that are easy to use, last long, and look good in any kitchen.

Material Advances

Material science shapes the future of membrane switches. Thin films like polyester, polycarbonate, and polyimide make the main layers. These materials keep the panel light and strong. Special coatings help the panel resist wear and look better.

Printing methods for circuits and contacts also get better. Conductive inks keep the circuit working after many uses. Stainless steel or polyester domes give a clear click and last a long time. Acrylic adhesives hold the layers together and keep out water.

Key advances in materials are:

• Waterproof and dustproof layers for longer life.
• Light and small designs for modern kitchens.
• Custom materials for special needs, like extra strength or better feel.
• Use of green materials and eco-friendly ways to make them.

Many brands now pick materials that help the earth and work with smart home systems.

Reliability

Reliability is still a top goal for future membrane switches. Engineers use new designs to keep water and dust away from circuits. They put LEDs and metal domes away from the edges to stop short circuits. Strong adhesive tapes seal the layers tight.

Some panels use silicone rubber seals or keypads for better waterproofing. Waterproof frames keep water away from important parts. Circuit boards sit away from the edges to lower the risk of damage.

Steps to make switches more reliable are:

1. Careful part placement to avoid water problems.
2. Use of strong adhesives and silicone seals.
3. Waterproof frames that protect the inside.
4. Circuit designs that keep key parts safe.
5. Strict quality checks and lab tests.
6. High waterproof ratings, like IP67 or IP68.

These changes help membrane switches work well in busy kitchens and last for many years.

Membrane switches are very important for how well microwaves work. They are thin and strong, so they last a long time. When you press a button, you get clear feedback. This makes it easy to use the microwave. SOUSHINE makes switches that work well in busy kitchens. Their switches help keep the control panel safe and simple. As technology gets better, new features will make microwaves even easier and smarter to use.
