A Seat Belt Reminder (SBR) system is a critical safety component in modern vehicles, designed to increase seat belt usage rates and reduce injuries during collisions. The effectiveness of any SBR system is fundamentally dependent on its ability to accurately detect the presence of an occupant in a seat. SOUSHINE provides advanced force sensing solutions that form the core of reliable and precise occupant detection for the automotive industry.
What is a Seat Belt Reminder (SBR) System?
A Seat Belt Reminder (SBR) system is an active safety feature that monitors the status of a vehicle’s seat belts. It alerts the driver and passengers with visual and audible warnings if a seat is occupied but the corresponding seat belt is not fastened. These systems are mandated by regulations in many regions and are a key factor in achieving high scores in vehicle safety assessments like the New Car Assessment Programme (NCAP). The primary components of an SBR system are an occupant detection sensor, a seat belt buckle sensor, and a warning system (light and chime) controlled by the vehicle’s Electronic Control Unit (ECU).
How Force Sensing Resistors (FSR) Enable SBR Systems
The accuracy of an SBR system begins with the occupant detection sensor. SOUSHINE utilizes Force Sensing Resistor (FSR) technology for this application due to its reliability, durability, and low profile. The integration works through a clear process:
- Integration: An ultra-thin SOUSHINE FSR sensor is integrated directly into the base cushion of the vehicle seat. Its minimal thickness ensures no impact on the seat’s design, comfort, or ergonomics.
- Force Application: When an individual sits on the seat, their weight exerts a direct force onto the FSR sensor.
- Resistance Change: The FSR is a variable resistor. The applied force causes a quantifiable decrease in the sensor’s electrical resistance. The amount of resistance change is proportional to the amount of force applied.
- Signal Processing: This change in resistance is read by the vehicle’s ECU. The ECU is calibrated to a specific resistance threshold that corresponds to the weight of a human occupant.
- System Activation: If the ECU detects that the resistance has dropped below this preset threshold (indicating an occupant is present) and the seat belt buckle sensor reports that the belt is unlatched, it triggers the SBR visual and audible alerts.
Why Accurate Occupant Detection is Mission-Critical
The quality of the occupant detection sensor directly influences the safety, reliability, and user experience of the vehicle.
- Enhancing Vehicle Safety: The primary objective. By ensuring the SBR system functions only when a person is actually in the seat, it drives higher seat belt usage, which is proven to save lives and prevent serious injury.
- Achieving Regulatory Compliance: Automotive regulations, such as the Federal Motor Vehicle Safety Standards (FMVSS) in the U.S. and ECE Regulations in Europe, have stringent requirements for SBR functionality. Our sensors are designed to help manufacturers meet and exceed these standards.
- Securing High Safety Ratings: Top vehicle safety ratings from organizations like Euro NCAP are contingent on the presence and performance of advanced SBR systems. A reliable sensor is a prerequisite for achieving a 5-star rating.
- Preventing False Alarms: A low-quality sensor might trigger the SBR alarm for a heavy object like a grocery bag or a laptop, leading to user annoyance and the potential for drivers to ignore the warning. SOUSHINE sensors can be calibrated with precise force thresholds to distinguish between a human occupant and inanimate objects, ensuring system accuracy and improving the end-user experience.
SOUSHINE’s FSR Solutions for SBR Systems
SOUSHINE specializes in the research, development, and production of force sensing components for automotive applications. Our FSRs for SBR systems offer distinct advantages:
- Durability and Reliability: Designed and tested to withstand the demanding automotive environment, including a wide range of temperatures, humidity, and vibrations for the lifetime of the vehicle.
- Customization: We engineer sensor solutions tailored to specific seat designs, geometries, and activation force requirements. The sensor shape, size, and sensitivity can be fully customized.
- Ultra-thin Profile: Our sensors are constructed on flexible polymer films, making them exceptionally thin and easy to integrate without compromising seat comfort or manufacturing processes.
- Cost-Effectiveness: We provide a high-performance sensing solution that is scalable and economically viable for large-scale automotive production.

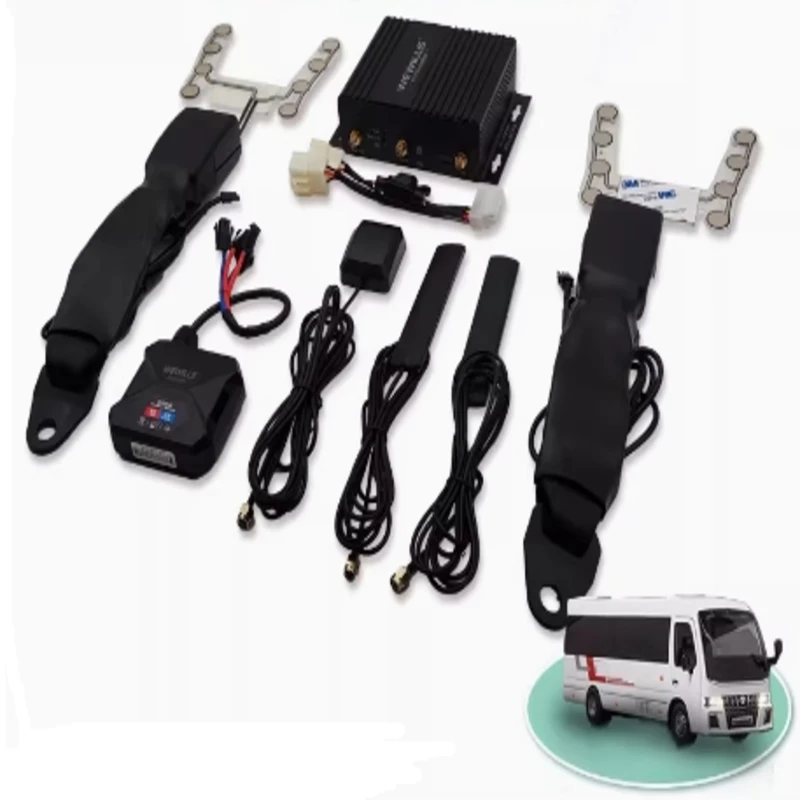

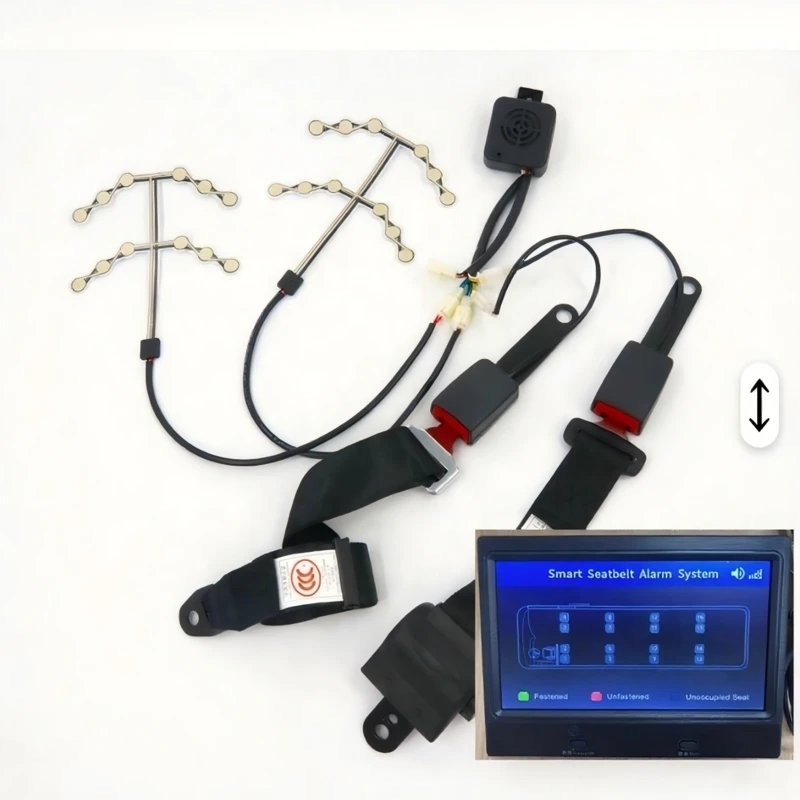

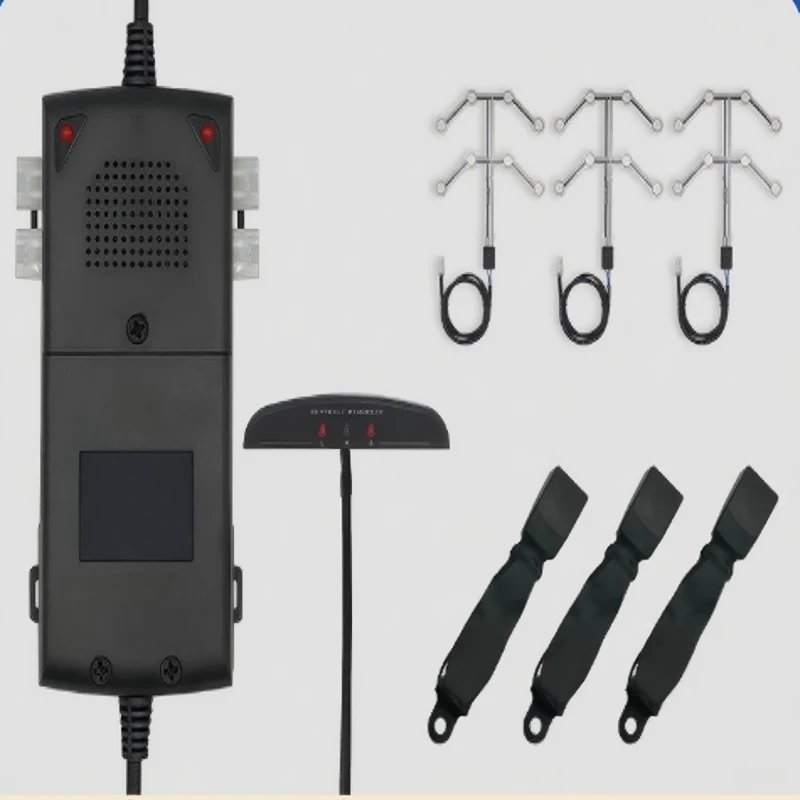

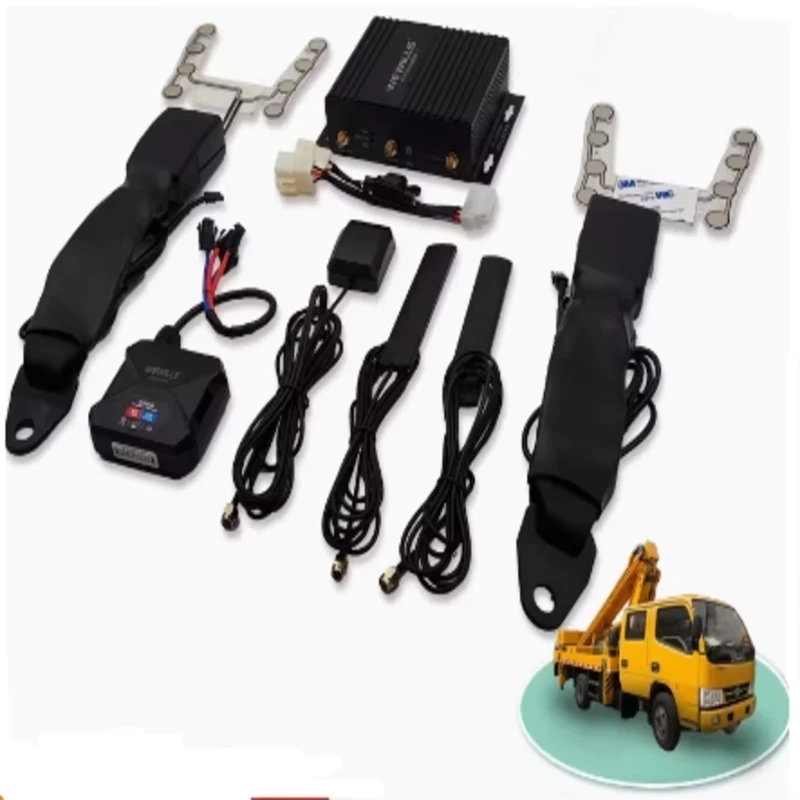

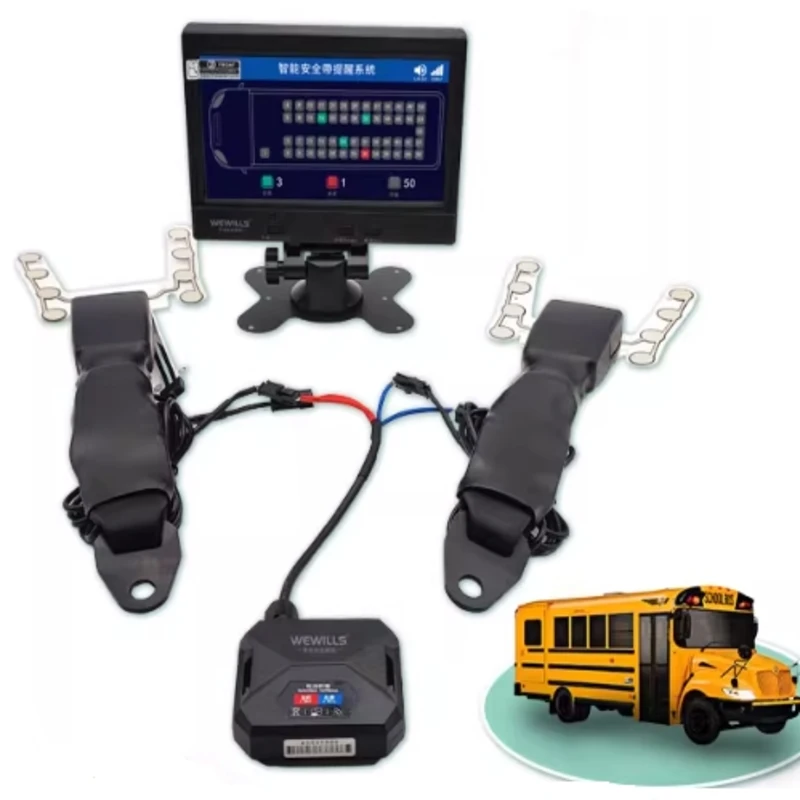

Display
FAQ
What is the primary advantage of FSR technology over other sensor types for occupant detection?
Force Sensing Resistors (FSRs) offer a superior combination of reliability, durability, a very thin profile, and cost-effectiveness. Unlike capacitive systems, they are less susceptible to interference from moisture or electronic devices. Their simple construction ensures a long operational life within the demanding automotive environment.
Can SOUSHINE sensors be customized for our specific seat architecture?
Yes. Customization is a core part of our service. We work directly with automotive engineers and Tier 1 suppliers to design and manufacture FSR sensors that match the specific shape, pressure sensitivity, and connection requirements of any seat design.
How do your sensors prevent false positives from objects placed on the seat?
False positives are prevented through system-level calibration. Our sensors provide consistent and repeatable resistance-to-force data. This allows the vehicle’s ECU to be programmed with a specific force threshold (e.g., 30 lbs / 13.6 kg) that must be crossed to classify the object as a human occupant, thus ignoring lighter items.
What is the typical operational lifespan of a SOUSHINE SBR sensor?
Our automotive-grade FSR sensors are designed and validated to last the lifetime of the vehicle. They are tested for millions of actuation cycles to ensure long-term performance and reliability.
How does your manufacturing process ensure quality for the automotive sector?
Our production facilities adhere to stringent quality management systems. We conduct rigorous testing for temperature cycling, vibration, humidity, and load endurance to ensure every sensor meets the high standards required for automotive safety systems.
