The seat belt is a primary restraint system in modern vehicles, and confirming its correct engagement is critical for passenger safety. Automotive manufacturers are required to integrate robust Seat Belt Reminder (SBR) systems to meet global safety standards, such as those mandated by the NHTSA and Euro NCAP. SOUSHINE develops and produces advanced Force Sensing Resistors (FSR) that are integrated into seat belt buckles, providing a highly reliable method for detecting latch engagement and ensuring the integrity of the SBR system.
What Are Force Sensing Seat Belt Sensors?
A force sensing seat belt sensor is an electronic component, typically a Force Sensing Resistor (FSR), installed within the seat belt buckle mechanism. Its function is to detect the presence and force exerted by the metal latch plate when the seat belt is fastened.
Unlike simple mechanical switches that only detect contact, a force sensor confirms that the latch is properly seated and applying a specific clamping force. This data is then sent to the vehicle’s Electronic Control Unit (ECU) to activate or deactivate the SBR system’s audible and visual alerts. This technology provides a more reliable signal, minimizing the potential for false negatives (failing to detect a buckled belt) or false positives.
How Do FSR-Based Seat Belt Sensors Function?
The operational principle of a SOUSHINE force sensing seat belt sensor is precise and dependable, involving a multi-stage process integrated with the vehicle’s electronic systems.
- Integration: A thin, durable FSR sensor is strategically positioned inside the seat belt buckle assembly, directly in the path of the belt’s metal latch plate.
- Actuation: When a passenger inserts the latch plate into the buckle, it presses firmly against the active surface of the FSR.
- Resistance Change: The FSR is engineered with a unique property: its electrical resistance changes in direct proportion to the amount of force applied to its surface. An unbuckled state presents infinite or very high resistance. When the latch plate applies force, the resistance drops to a specific, measurable level.
- Signal Transmission: This change in resistance is detected by the vehicle’s ECU. The system is calibrated so that only a force level consistent with a properly engaged latch will trigger a “buckled” state signal.
- System Response: The ECU processes this information to control the SBR system. If the seat is occupied (as determined by a seat occupancy sensor) but the ECU does not receive the “buckled” signal from the force sensor, it will initiate the warning alerts.
Why Use Force Sensing Technology in Seat Belt Systems?
The integration of force sensing technology offers distinct advantages over traditional mechanical switches for this critical safety application.
- Enhanced Reliability: Force sensors confirm that the latch is not only present but securely engaged, reducing the risk of system errors caused by partially latched buckles or foreign object interference.
- Superior Durability: Our FSR sensors are constructed with no moving parts, making them highly resistant to the vibration, shock, and mechanical wear inherent in an automotive environment. This leads to a longer operational lifespan.
- Improved Safety Compliance: The high accuracy of force sensors helps automotive manufacturers meet and exceed stringent international safety regulations and achieve higher scores in new car assessment programs (NCAP).
- Design Flexibility: The thin and flexible profile of our FSRs allows for seamless integration into a wide range of compact and complex buckle designs without requiring significant mechanical changes.
SOUSHINE’s Role in Automotive Safety
At SOUSHINE, we specialize in the research, development, and manufacturing of custom force sensing solutions for the automotive industry. Our FSR technology is designed to meet the rigorous demands of Tier 1 suppliers and OEMs. We provide:
- Custom Sensor Design: Tailoring sensor shape, size, and force sensitivity to your specific buckle mechanics and electronic requirements.
- Quality Manufacturing: Production in compliance with strict automotive quality management standards.
- Technical Partnership: Engineering support from concept to mass production to ensure optimal sensor performance and integration.

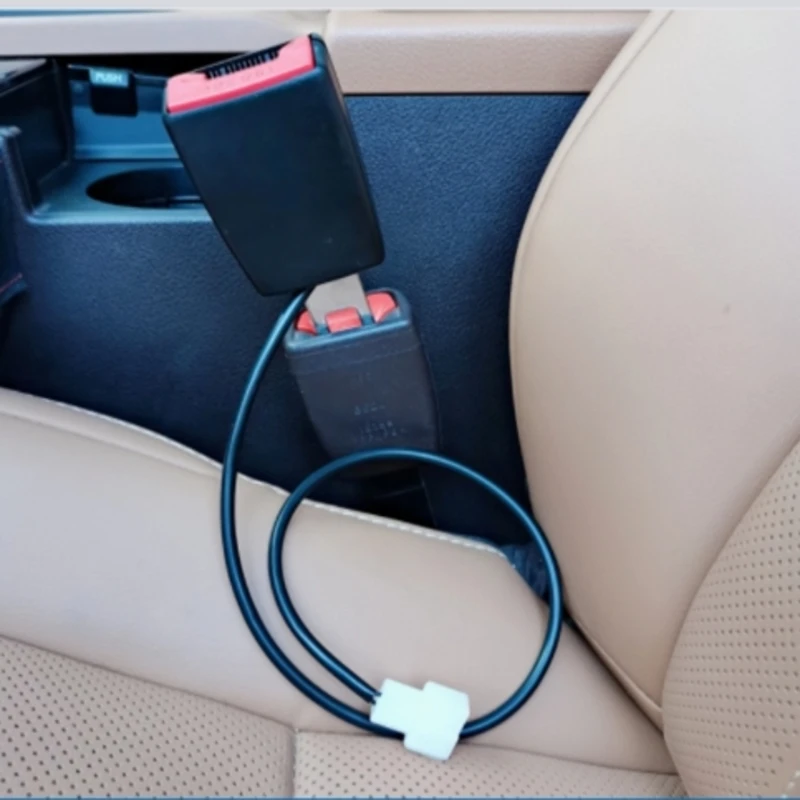

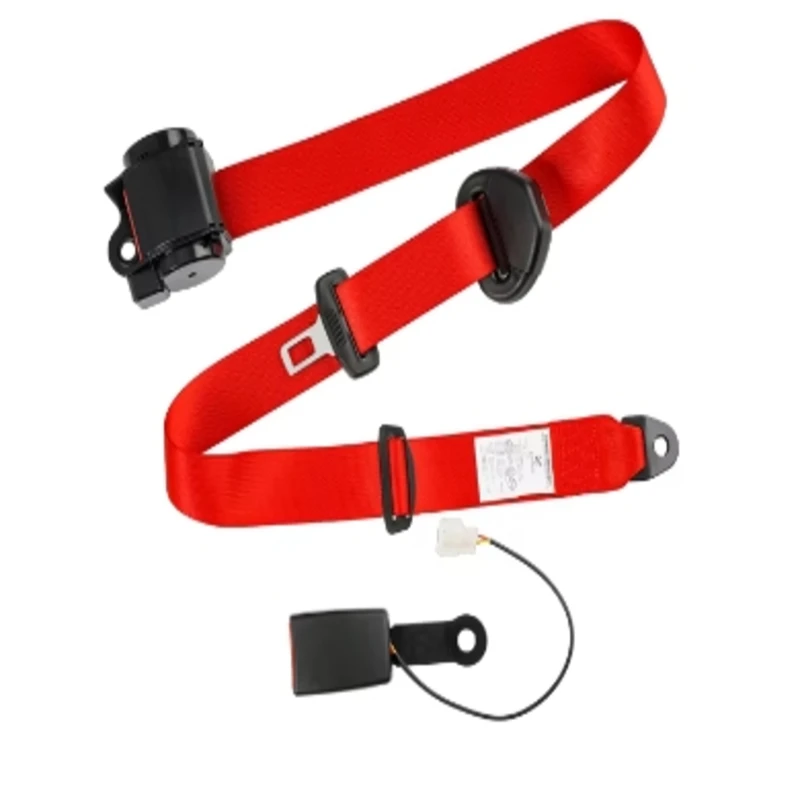

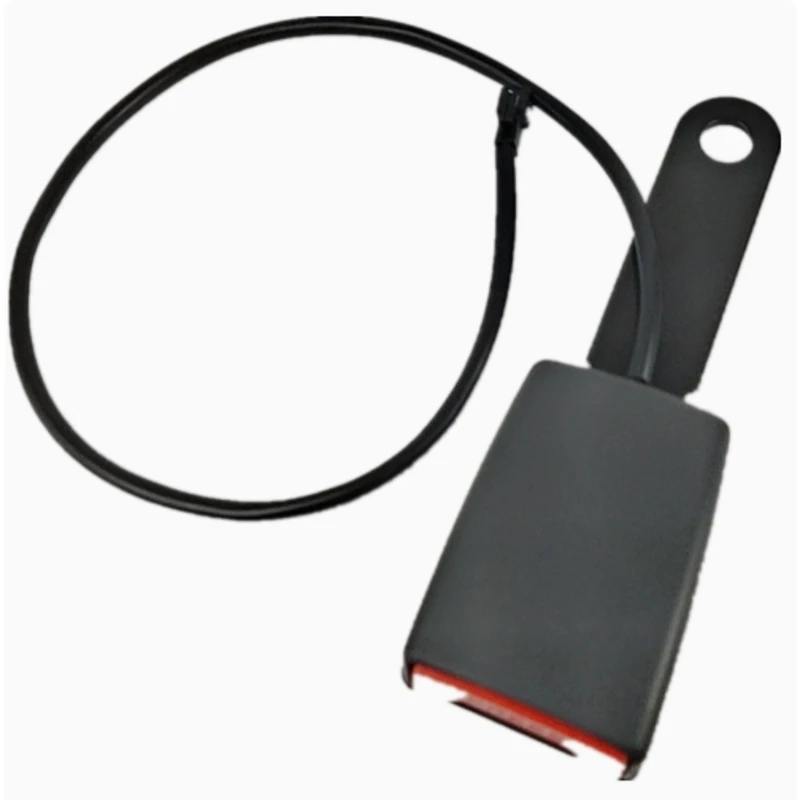

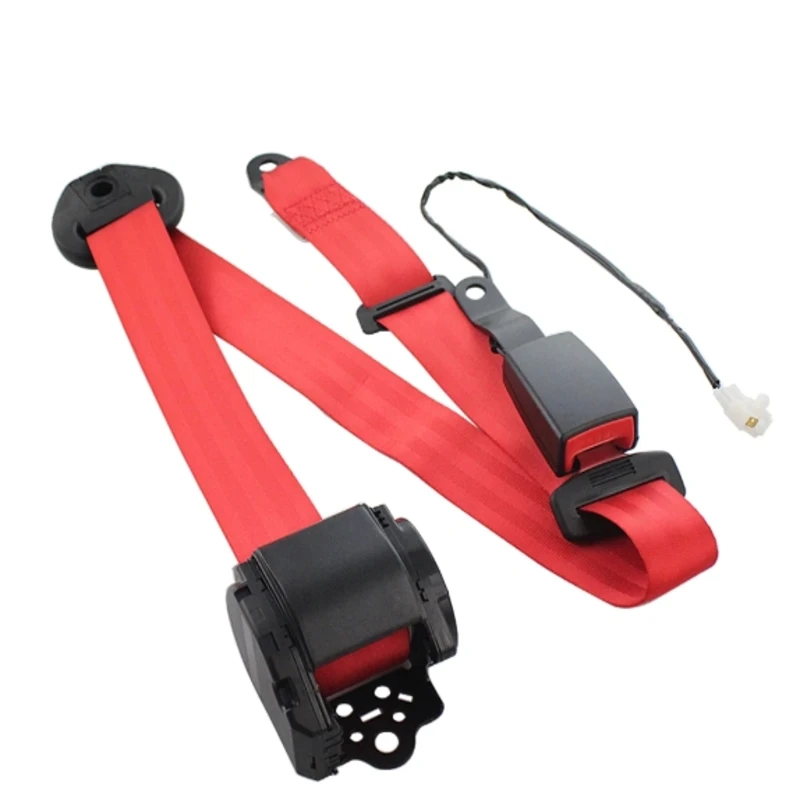

Display
FAQ
What is the primary difference between a force sensor and a simple mechanical switch in a seat belt buckle?
A mechanical switch typically detects only the presence or absence of the metal latch (a binary open/closed circuit). A force sensor measures the actual force applied by the fully engaged latch, confirming a secure connection and reducing the possibility of errors from incomplete latching.
Are SOUSHINE’s seat belt sensors resistant to environmental factors like temperature and humidity?
Yes. Our sensors are designed and manufactured using robust materials selected for their stability across the wide range of temperatures, humidity, and vibrations experienced within a vehicle cabin over its lifetime.
Can your force sensors be customized for our proprietary buckle design?
Absolutely. Customization is a core part of our business. We work directly with client engineering teams to design and produce FSRs that fit the specific physical dimensions, force activation curves, and electrical termination requirements of their unique buckle designs.
How does this sensor integrate with the overall Seat Belt Reminder (SBR) system?
Our force sensor is a critical input device for the SBR system. It works in conjunction with a seat occupancy sensor. The system logic is typically: IF seat is occupied AND force sensing belt sensor signal is "unbuckled", THEN activate SBR warnings.
What is the expected operational lifespan of these sensors?
SOUSHINE’s FSRs are solid-state devices with no moving parts, designed for high-cycle applications. They are engineered to exceed the typical lifespan requirements of automotive components, enduring millions of buckling cycles without degradation in performance.
