The evolution of patient care increasingly relies on continuous, non-invasive monitoring. Smart beds, integrated with advanced sensor technology, are at the forefront of this transformation. They provide healthcare professionals with real-time data on patient status, enhancing safety and operational efficiency. SOUSHINE provides the core component technology—Force Sensing Resistors (FSRs)—that enables medical beds to become intelligent monitoring platforms. Our sensors are designed for reliability, accuracy, and seamless integration.
What Are Force Sensors in Smart Beds for Patient Monitoring?
A force sensor, specifically a Force Sensing Resistor (FSR), is a thin, flexible, and durable polymer film component. It exhibits a change in electrical resistance when a force or pressure is applied to its active surface.

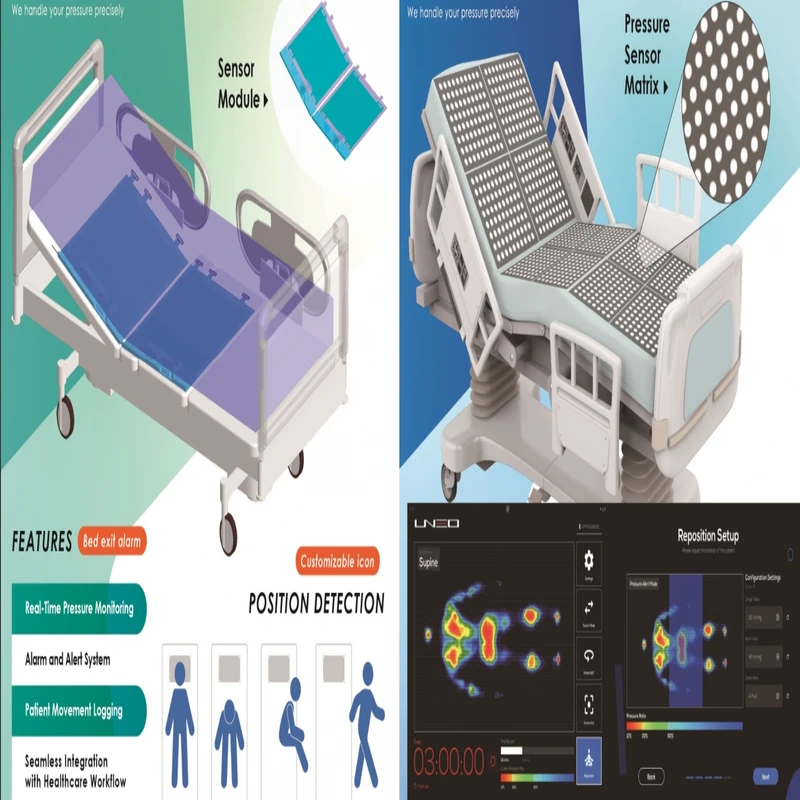

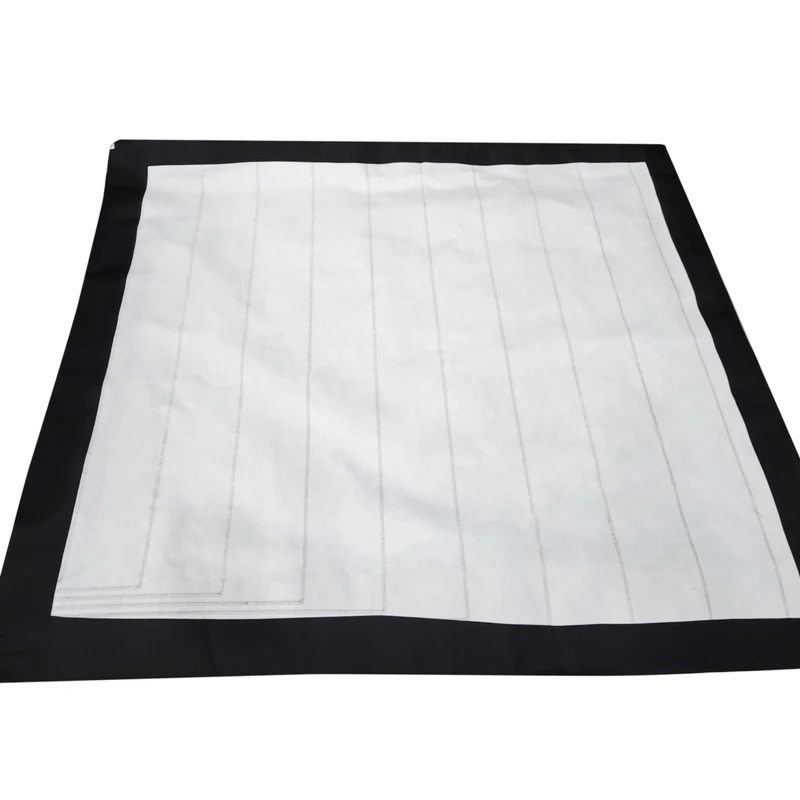

In the context of a smart bed, an array of these FSR sensors is integrated into the mattress or the bed’s support surface. This sensor grid functions as an intelligent layer capable of detecting the presence and distribution of weight across the entire bed. They are the primary hardware enabling the bed to collect raw data about the patient resting upon it.
How Do Force Sensors Enable Patient Monitoring?
The functionality of a force-sensing smart bed is a multi-stage process that transforms physical pressure into actionable data.
- Micro-movements: With sufficient sensitivity, the sensors can even detect the rhythmic pressure changes associated with respiration and heart rate (ballistocardiography).
- Integration: FSR arrays are strategically placed in zones underneath the patient. Their thin profile ensures they do not affect the comfort or ergonomics of the mattress.
- Data Acquisition: As a patient lies on the bed, their body exerts force on the sensors below. Each sensor in the array measures the specific amount of force in its location.
- Signal Processing: The resistance of each FSR changes in direct proportion to the applied force. This raw analog data is sent to a microcontroller.
- Analysis and Output: The system’s software aggregates the data from the entire sensor grid to create a real-time “pressure map” of the patient. By analyzing this map, the system can accurately determine:
- Patient Presence: Detects if the bed is occupied or empty.

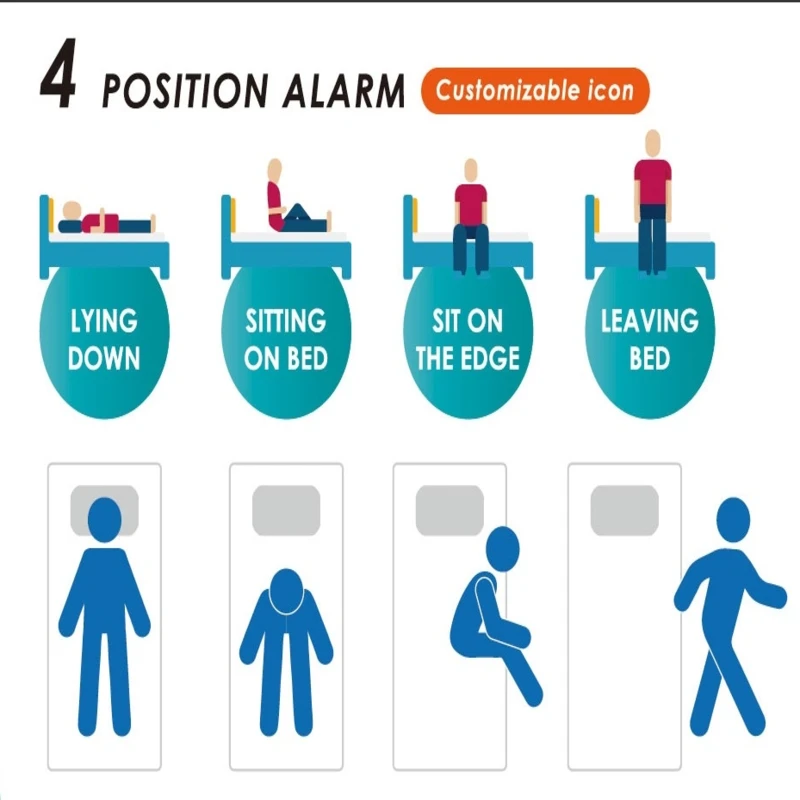

- Patient Position: Identifies the patient’s posture (supine, prone, on their side, sitting up).
- Movement: Tracks subtle and significant shifts in position, indicating restlessness or a change in status.
Why Use SOUSHINE’s FSR Technology for Smart Beds?
Selecting the right sensing component is critical for the performance and reliability of any medical device. SOUSHINE’s Force Sensing Resistors are engineered specifically for demanding applications like patient monitoring.
- Cost-Effectiveness: FSR technology offers a robust and reliable method for comprehensive patient monitoring at a competitive price point compared to other sensing technologies.
- Accuracy and Sensitivity: Our FSRs provide high-resolution data, capable of distinguishing between subtle pressure variations for applications like respiratory monitoring.
- Durability and Reliability: Designed for a long operational life, our sensors withstand the millions of actuations and the rigorous cleaning protocols common in clinical environments.
- Thin and Flexible Profile: The ultra-thin nature of our sensors allows for integration into any mattress or surface without compromising patient comfort.

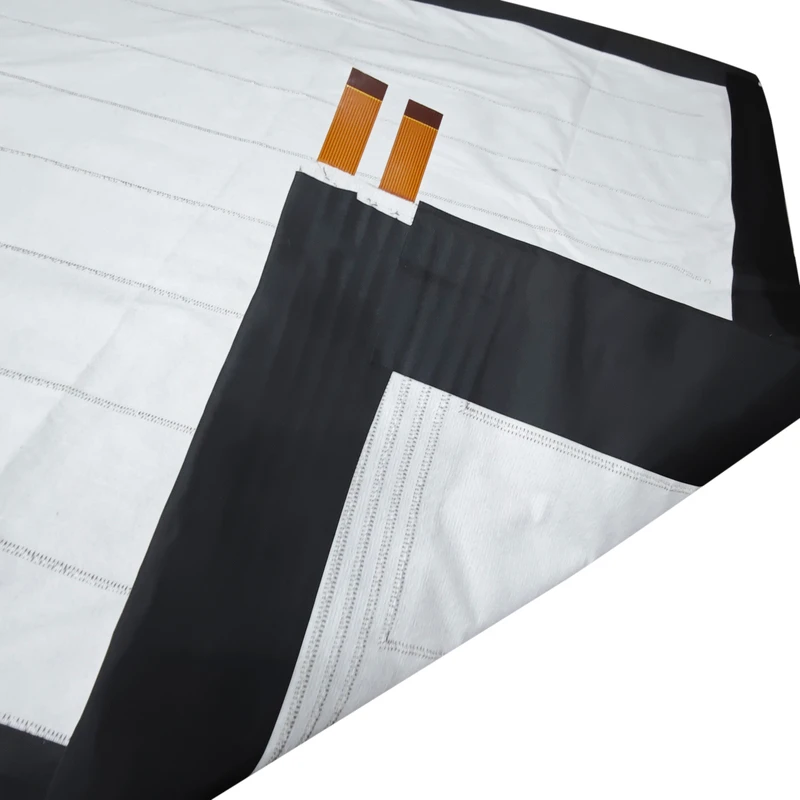

- Customization: We partner with device manufacturers to design and produce FSR solutions tailored to specific requirements, including sensor shape, size, pressure sensitivity range, and connector configurations.
Display
FAQ
How durable are SOUSHINE’s force sensors in a hospital environment?
Our Force Sensing Resistors are constructed from robust polymer materials and are designed to endure millions of pressure cycles. They are sealed to resist moisture and common medical cleaning agents, ensuring long-term reliability in clinical settings.
Can the sensors be customized for our specific bed design and monitoring requirements?
Yes. Customization is a core part of our service. We work directly with your engineering teams to define specifications for sensor dimensions, active sensing area, sensitivity range, and electrical termination to ensure optimal performance for your application.
How do the sensors differentiate between patients of varying weights?
The system is calibrated to accommodate a wide dynamic range of patient weights. The data from the FSR array provides a detailed pressure map, and the system’s software algorithm interprets this map relative to a baseline to accurately monitor any patient, regardless of their size.
What is the primary difference between a Force Sensing Resistor (FSR) and a load cell in this application?
While both measure force, they serve different purposes. A load cell typically measures total force at a single point (e.g., total bed weight). An FSR array, by contrast, measures distributed pressure over a large area, providing a detailed map of how weight is distributed, which is essential for determining patient position and movement.
What type of electrical output do the sensors provide?
Our FSRs provide a variable resistance that is inversely proportional to the applied force. This is an analog signal that can be easily read by a simple voltage divider circuit connected to a microcontroller’s analog-to-digital converter (ADC). We can provide reference circuit designs to facilitate integration.
