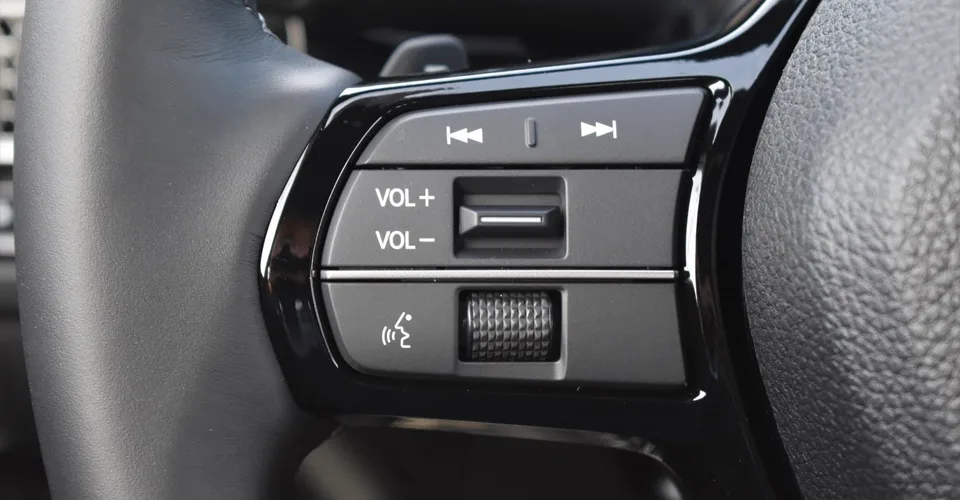

Steering wheel mounted controls are a critical component of modern vehicle Human-Machine Interfaces (HMIs). They centralize control over infotainment, communication, and driver-assist systems, allowing the driver to operate vehicle functions without removing their hands from the wheel. SOUSHINE specializes in the research, development, and production of custom membrane switch technology engineered specifically for the demanding environment of automotive steering wheel applications. Our solutions prioritize reliability, durability, and precise functionality.
What Are Membrane Switches for Steering Wheel Controls?
A membrane switch for steering wheel controls is a custom-engineered user interface assembly. It consists of multiple layers of flexible polymer films, including a graphic overlay, adhesive layers, and one or more circuit layers printed with conductive inks. When a specific button location on the overlay is pressed, it flexes a circuit layer to make contact with an underlying circuit, completing a connection and sending a signal to the vehicle’s electronic control unit (ECU). This technology allows for the creation of sealed, low-profile, and highly reliable control panels that can be seamlessly integrated into the complex geometry of a steering wheel.
How Our Membrane Switches Function in a Steering Wheel
The operational principle of a SOUSHINE membrane switch in a steering wheel control module is based on momentary electrical contact within a sealed, flexible package.
- Actuation: The driver presses a designated button on the graphic overlay. The overlay is typically embossed to provide a defined button area.
- Circuit Completion: This pressure flexes the top circuit layer through a precisely cut spacer layer. A conductive pad on the underside of the top circuit connects with a corresponding trace on the bottom circuit layer.
- Signal Transmission: The completed circuit sends a low-voltage signal through a flexible tail connector to the vehicle’s control electronics.
- Tactile Feedback: To confirm a successful actuation, a metal or polyester (polydome) dome is integrated into the switch construction. When pressed, this dome collapses, providing a distinct “snap” or tactile feedback to the driver, and then returns to its original position upon release.
Why Use SOUSHINE Membrane Switches for Steering Wheel Controls?
Automotive manufacturers and Tier 1 suppliers choose SOUSHINE’s membrane switch technology for steering wheel applications due to a combination of technical advantages and manufacturing expertise.
- Durability and Reliability: Our switches are engineered to withstand millions of actuations. They are rigorously tested against automotive standards for vibration, extreme temperature ranges (-40°C to +85°C), humidity, and exposure to common cleaning agents.
- Sealed Construction: The sealed, multi-layer design provides inherent protection against dust, moisture, and liquid spills, achieving IP65 ratings or higher. This is critical for maintaining long-term performance in a vehicle cabin environment.
- Design Freedom and Customization: Membrane switch technology allows for significant design flexibility. We collaborate with your engineering teams to customize button shape, layout, graphics, and backlighting to match brand identity and ergonomic requirements.
- Low-Profile Integration: The thin, flexible nature of membrane switches allows for seamless integration into the tight space constraints and curved surfaces of modern steering wheels, without the bulk of traditional mechanical switches.
- Cost-Effectiveness: For control panels with multiple buttons, an integrated membrane switch can be more cost-effective to manufacture and assemble compared to installing numerous individual mechanical switches.
Display
FAQ
What is the typical actuation life of your membrane switches for steering wheels?
Our automotive-grade membrane switches are typically rated for over 3 million actuations per button, ensuring performance throughout the entire lifecycle of the vehicle.
How do your switches withstand the harsh automotive environment?
We use automotive-specified materials, such as UV-resistant graphic overlays and industrial-grade adhesives. Every design undergoes rigorous environmental testing, including thermal shock, humidity cycling, and vibration tests to validate its durability.
Can the button illumination be customized in terms of color and brightness?
Yes. We can integrate specific LEDs based on your requirements for color temperature (Kelvin), wavelength (nm), and luminosity (mcd). We work with you to ensure lighting is uniform and meets OEM standards.
Can the tactile feel of the buttons be adjusted?
Absolutely. We can alter the tactile feedback by changing the type, size, and actuation force of the integrated metal domes. We can provide prototypes with different specifications for your team’s evaluation.
What information do you need to start a new steering wheel control project?
To begin, we typically require a schematic or circuit diagram, a CAD file or drawing of the desired layout, specifications for backlighting and tactile feedback, and any applicable environmental or testing requirements. Contact us to start a consultation.
