A Tire Pressure Monitoring System (TPMS) is an electronic system engineered to monitor the air pressure inside a vehicle’s tires. It provides real-time information to the driver, issuing a warning when tire pressure falls below a safe level. The accuracy and reliability of these systems are paramount for vehicle safety and performance. At SOUSHINE, our core competency in force sensing technology is fundamental to the high-precision sensors that power modern direct TPMS, ensuring accurate and instantaneous pressure detection.
What are the Tire Pressure Monitoring Systems (TPMS)?
A TPMS is an advanced safety feature in modern vehicles that continuously tracks the inflation pressure of each tire. The system is designed to alert the driver to significant changes in tire pressure, typically through a visual warning on the dashboard instrument panel. There are two primary types of TPMS:

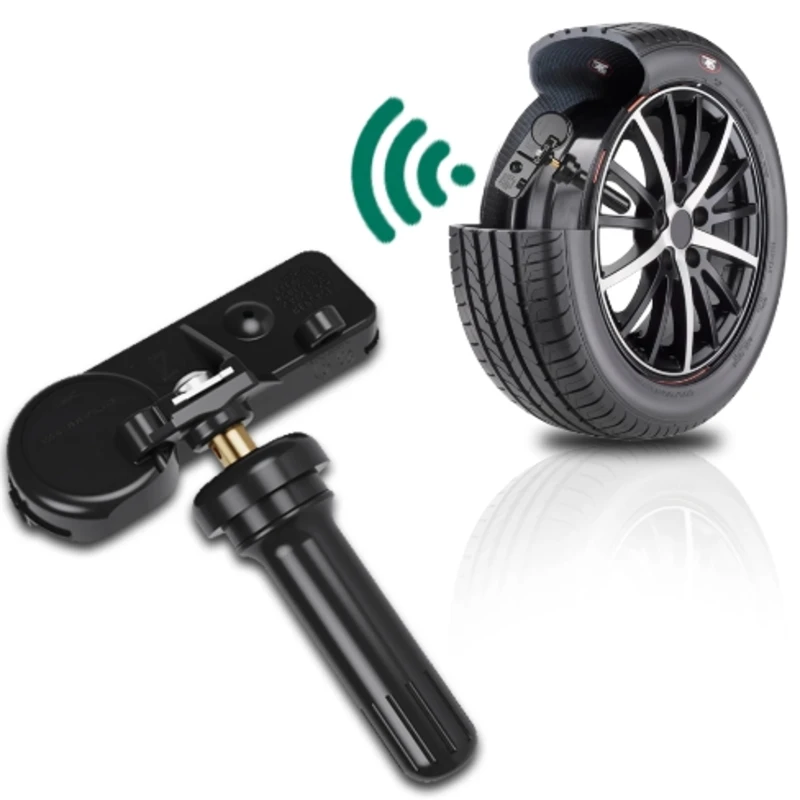

- Direct TPMS (dTPMS): This system uses a dedicated sensor, based on force sensing principles, mounted inside each tire. Each sensor directly measures the internal air pressure and temperature, transmitting this precise data wirelessly to the vehicle’s central control unit. SOUSHINE’s manufacturing and R&D focus is on the core force sensing components integral to these high-precision direct TPMS sensors.
- Indirect TPMS (iTPMS): This system utilizes the vehicle’s existing Anti-lock Braking System (ABS) wheel speed sensors. It infers low pressure by detecting discrepancies in the rotational speed of the tires; a tire with lower pressure will have a slightly smaller diameter and rotate faster. While functional, this method is less precise and cannot provide absolute pressure readings.
How Force Sensing Enables TPMS
The functionality of a direct TPMS sensor is a direct application of advanced force sensing technology. Air inside a tire exerts a physical force (pressure) on its container. The TPMS sensor is engineered to precisely measure this force.
At the heart of each sensor is a micro-electromechanical system (MEMS) pressure transducer. This component operates on one of two primary force sensing principles:
- Piezoresistive Sensing: These sensors incorporate a miniature silicon diaphragm that flexes in response to the force exerted by the tire’s air pressure. This physical deformation creates mechanical stress in the diaphragm. Embedded piezoresistive elements react to this stress by changing their electrical resistance. This change in resistance is precisely measured and converted into a digital pressure value. The greater the force from the air pressure, the greater the change in resistance.
- Capacitive Sensing: In this design, the force of the air pressure acts on a flexible diaphragm positioned opposite a fixed plate. These two elements form a capacitor. As pressure changes, the distance between the diaphragm and the plate alters, causing a direct and measurable change in the capacitor’s capacitance. This capacitance value is then converted into a precise pressure reading.
In both methods, the SOUSHINE technology accurately transduces a physical force—the air pressure—into an electrical signal. This signal is processed by the sensor’s electronics, combined with temperature data, and transmitted via radio frequency (RF) to the vehicle’s onboard computer, providing the driver with accurate, real-time tire pressure data.
Why TPMS is a Critical Automotive Application
The integration of force sensing technology in TPMS is critical for several operational and safety reasons, making it a mandatory feature in many regions worldwide.
- Optimized Vehicle Handling and Performance: Tire pressure directly affects a vehicle’s braking distance, cornering stability, and overall handling characteristics. Accurate pressure management, enabled by TPMS, is essential for maintaining the vehicle’s intended performance and stability.
- Enhanced Vehicle Safety: Incorrect tire pressure is a leading cause of tire failure, which can lead to catastrophic accidents. Under-inflation can cause overheating and structural damage, while over-inflation reduces traction. TPMS provides an immediate warning, allowing the driver to address the issue before it becomes a critical safety risk.
- Improved Fuel Efficiency: Under-inflated tires increase rolling resistance, forcing the engine to work harder and consume more fuel. By maintaining optimal tire pressure, as facilitated by accurate TPMS data, vehicle fuel efficiency can be significantly improved.
- Extended Tire Lifespan: Proper inflation ensures that the tire’s tread wears evenly across its surface. Chronic under-inflation or over-inflation leads to premature and uneven wear, drastically reducing the operational life of the tires and increasing replacement costs.

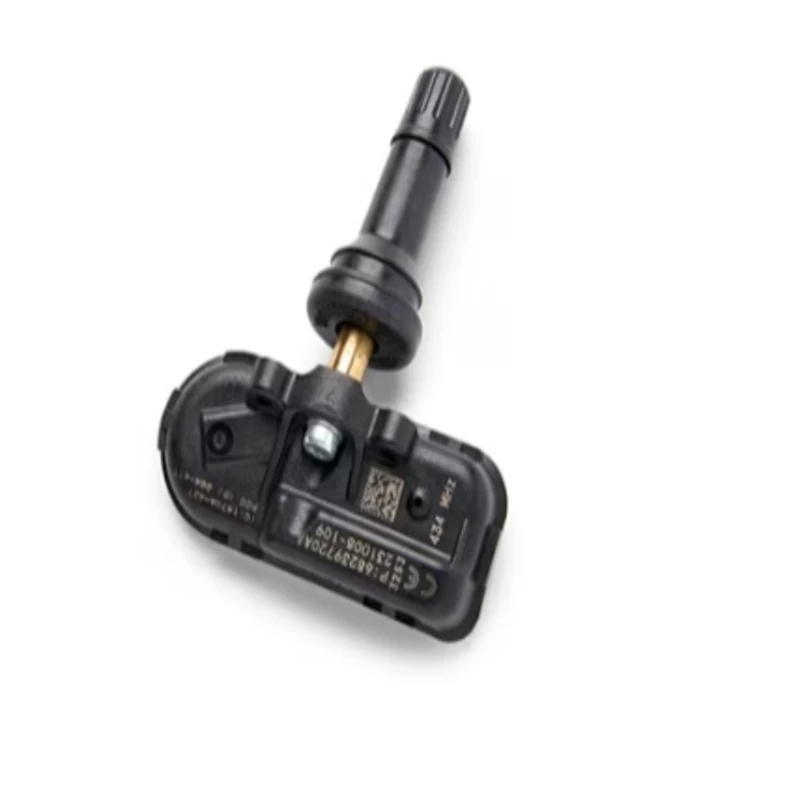

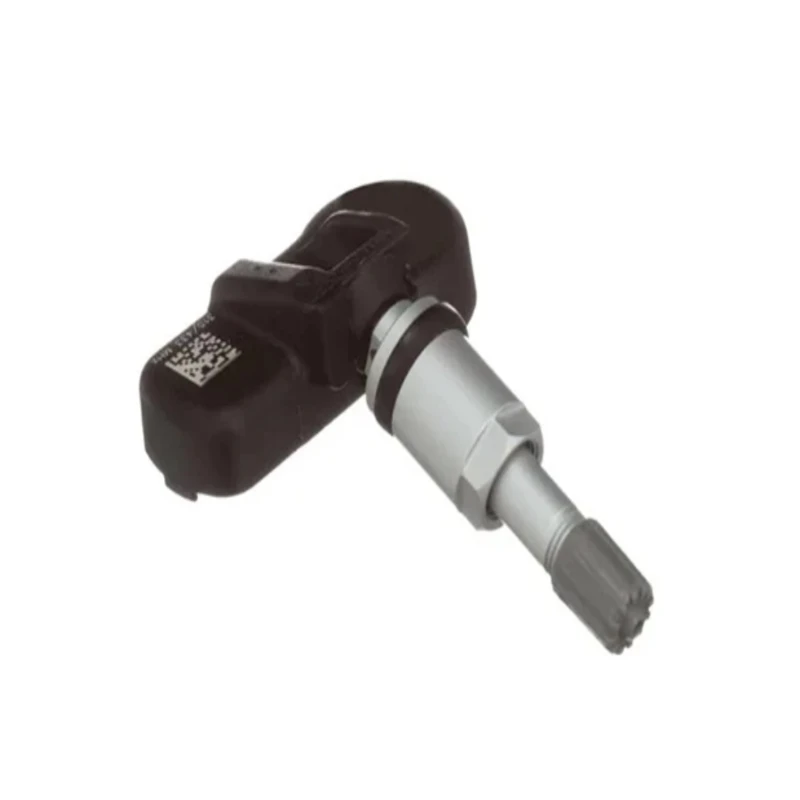

Display
FAQ
What is the difference between direct and indirect TPMS?
Direct TPMS uses individual force sensors inside each tire to measure air pressure directly and provide specific readings. Indirect TPMS uses the vehicle’s ABS sensors to infer pressure changes by monitoring tire rotation speed, which is less accurate and cannot measure absolute pressure. SOUSHINE specializes in the core components for direct TPMS.
What causes the TPMS warning light to turn on?
The most common reason is that the pressure in one or more tires has fallen below the manufacturer’s recommended level (typically by 25%). It can also be triggered by a significant increase in pressure, a malfunctioning sensor, or a low sensor battery.
How does temperature affect tire pressure?
Tire pressure changes with temperature. It typically decreases in colder weather and increases in warmer weather. This is why it is recommended to check tire pressure when the tires are “cold” (i.e., before driving). The sensors in a dTPMS also measure temperature to provide more accurate, compensated data.
What is the lifespan of a direct TPMS sensor?
A direct TPMS sensor is powered by an integrated battery. The typical lifespan is between 5 to 10 years, depending on the vehicle model, driving conditions, and sensor design. Once the battery is depleted, the entire sensor unit must be replaced.
Can I use a standard valve cap on a wheel with a TPMS sensor?
Yes, a standard plastic valve cap can be used. However, it is important to avoid metal caps, especially those made of brass or other alloys, as they can cause galvanic corrosion with the aluminum threads of the TPMS valve stem, potentially leading to seizure and damage.
