The control panel is the primary interface between the user and the washing machine. It must withstand frequent use, moisture, and cleaning agents while providing reliable input for the appliance’s lifecycle. SOUSHINE provides robust membrane switch solutions engineered specifically for the demanding environment of modern washing machines, ensuring functionality, durability, and a clean aesthetic.
What is a Membrane Switch for a Washing Machine Control Panels?
A membrane switch for a washing machine is a custom-engineered user interface built as a sealed unit. It consists of multiple layers of flexible polymer films, including a graphic overlay, adhesive layers, and a printed circuit layer with conductive traces. When a user presses a specific button on the overlay (e.g., ‘Start’, ‘Spin Cycle‘, ‘Water Temperature’), it closes a circuit, sending a command to the washing machine’s main controller. Unlike mechanical buttons, this sealed construction protects the sensitive electronics from external contaminants.
How Our Membrane Switches Function in an Appliance Environment
The operation is based on a momentary electrical contact principle:
- Actuation: The user applies pressure to a specific key or button on the graphic overlay.
- Contact: This pressure flexes the top circuit layer through a spacer cutout, causing a conductive pad on its underside to connect with a corresponding pad on the bottom circuit layer.
- Signal Transmission: The connection completes the electrical circuit, generating a signal that is transmitted via a flexible tail to the appliance’s microprocessor.
- Deactuation: Upon release, the top layer returns to its original position, breaking the circuit. For tactile switches, a metal or polyester dome provides a crisp “snap” feedback to confirm the press.
Why Use SOUSHINE Membrane Switches for Washing Machine Panels?
Integrating SOUSHINE membrane switches provides significant engineering and manufacturing advantages. Specifically engineered for reliability in high-humidity environments, our panels feature a sealed construction that offers superior protection against moisture and detergents (to IP65/IP67 standards) and a high-actuation life of over 1 million presses. This durability is matched by design flexibility, including extensive customization of graphics, backlighting, and integrated display windows on a seamless, easy-to-clean surface. This streamlined approach reduces component count and simplifies assembly, ultimately lowering overall manufacturing costs while enhancing product aesthetics and longevity.

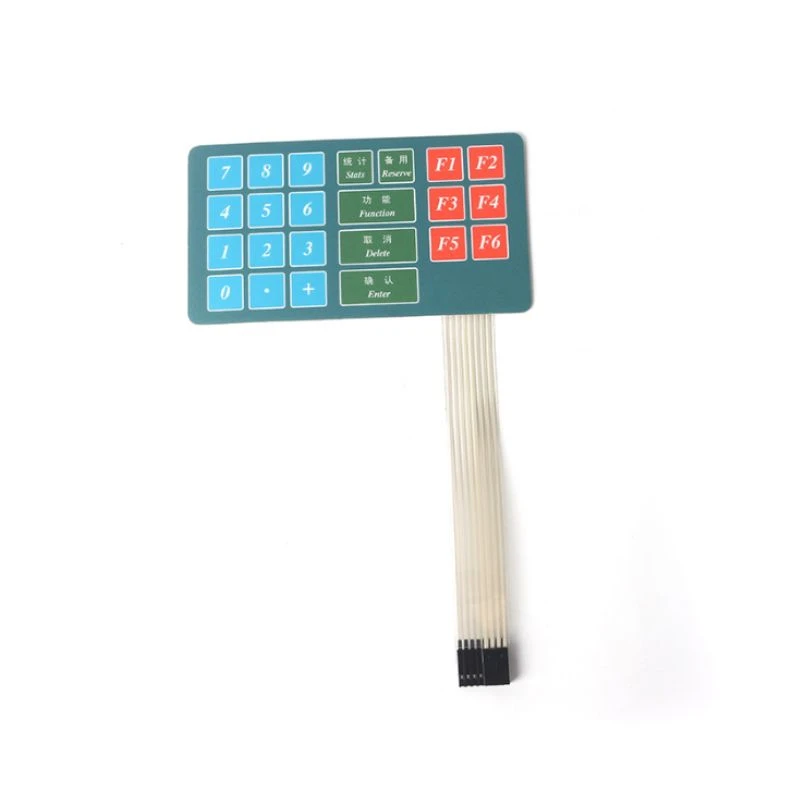

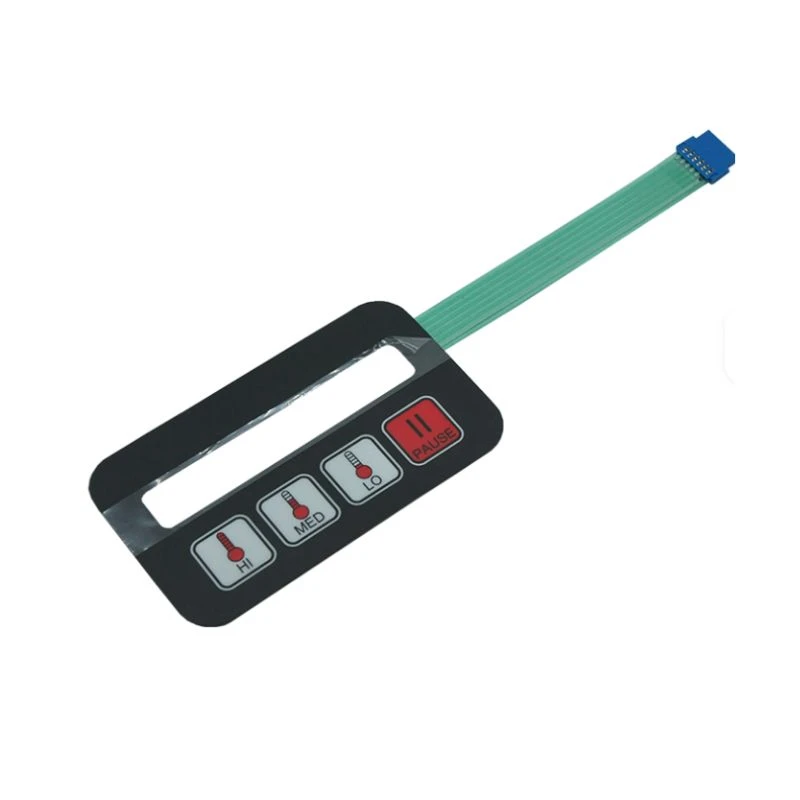

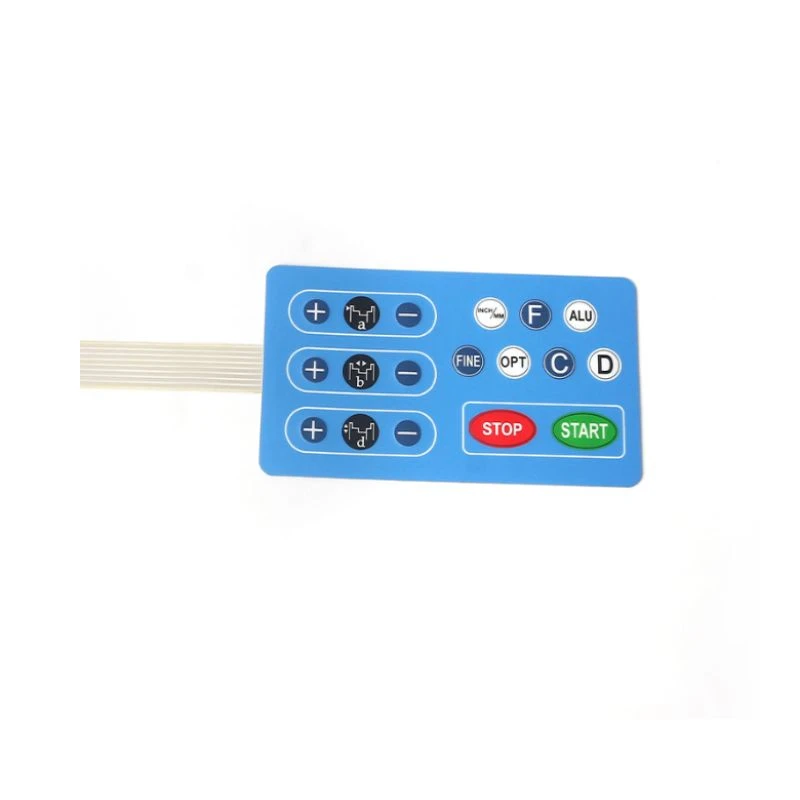

Display
FAQ
What is the typical actuation life of your membrane switches for appliances?
Our standard membrane switches for washing machine applications are rated for a minimum of 1 million actuations per key, ensuring long-term reliability throughout the product’s lifecycle. Higher-rated options are available based on material selection and design.
Can your control panels withstand common household cleaning chemicals?
Yes. We select overlay materials, typically polyester, known for their high resistance to a wide range of chemicals, including common detergents and cleaning agents found in a laundry environment. We can provide material specification sheets upon request.
Can you integrate transparent windows for digital displays?
Absolutely. We can engineer the graphic overlay to include optically clear windows for seamless integration with seven-segment displays, LEDs, or small LCD screens, creating a single, unified interface component.
Do you offer tactile feedback options?
Yes. We offer both non-tactile switches and switches with tactile feedback. Tactile feedback is achieved by embedding metal or polyester domes within the switch layers, providing a definitive “click” sensation that users appreciate as confirmation of input.
What is the process for developing a custom control panel with SOUSHINE?
Our process begins with a technical consultation to understand your requirements (dimensions, electrical schematic, graphic design). We then move to engineering design and prototyping. Once the prototype is approved, we proceed with mass production and rigorous quality assurance testing before delivery.
